PL QR 1100V 425A 6P Gland Bracket (180) 120-C 65-70-G (245.1)

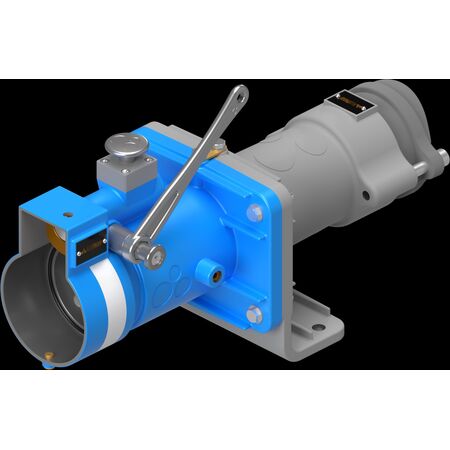

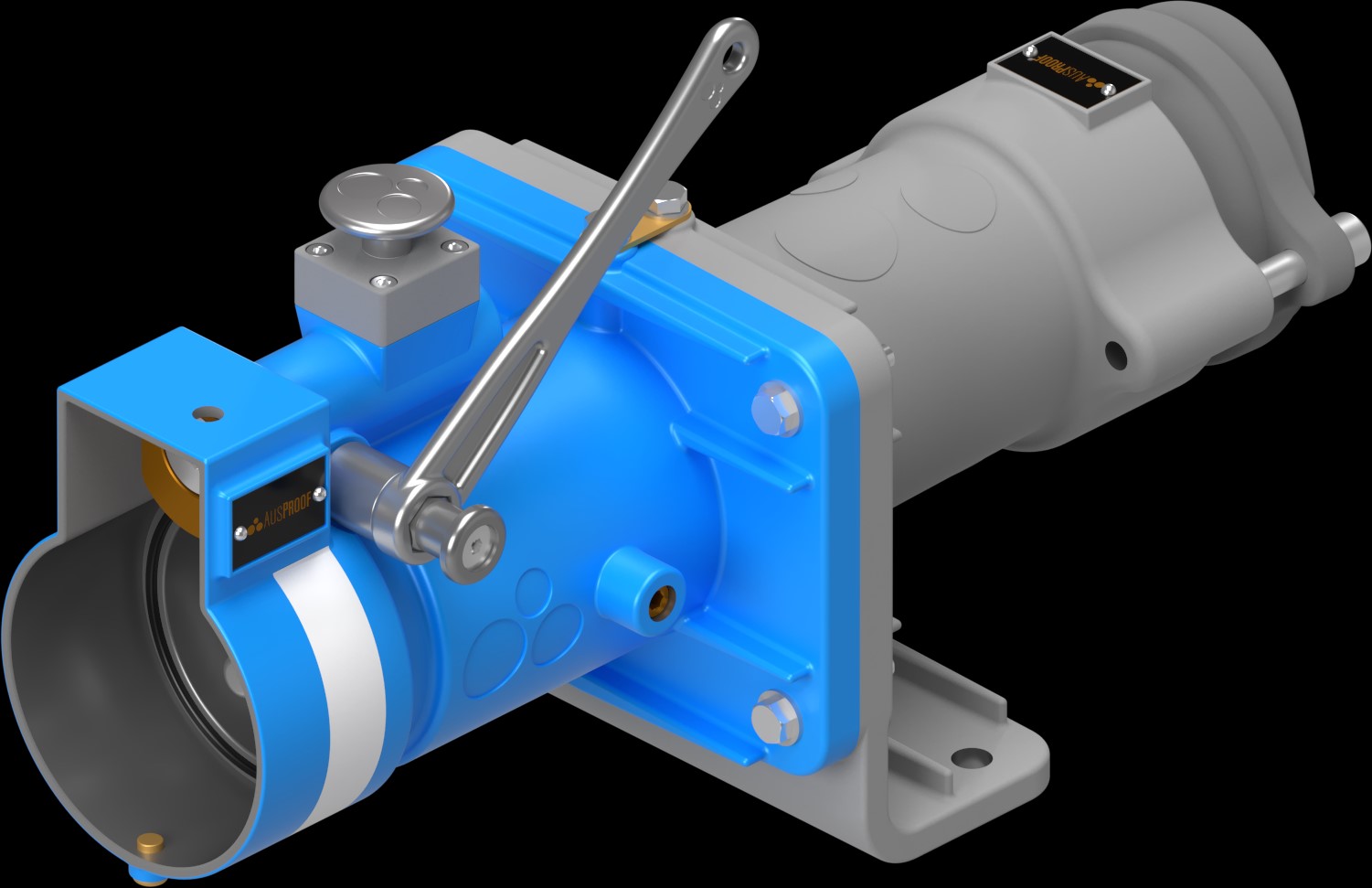

Ex-rated Gland Bracket 425A | IP55 Ingress Protection | Quick Release Mechanism | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2590QR

$3,896.80 List price: $4,839.80

+ −

30 Days Return Delivery Options

Ex-rated gland bracket with 425A current rating and IP55 ingress protection—ideal for mining and commercial applications. Built for hazardous environments, featuring a quick release mechanism and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL QR 1100V 425A 6P Gland Bracket (180) 120-C 65-70-G (245.1)

Brand: Ausproof

SKU: RS2590QR

Alternatively Known As: PL Range Quick Release Plug, Ex-rated Gland Bracket, 6 Pin Industrial Plug, Flameproof Electrical Connector

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 245mm x 70mm x 180mm
Weight: 10.7 kg

Key Features

Quick Release mechanism
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 for electrical equipment in hazardous areas

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site repairs.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL QR 1100V 425A 6P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
