Ex-rated Industrial Plug 1100V 425A 6P | IP55 Ingress Protection | Quick Release & Stainless Steel by Ausproof
Ex-rated industrial plug with 1100V operating voltage and 425A current rating—ideal for mining and tunnelling applications. Built for hazardous environments, featuring quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

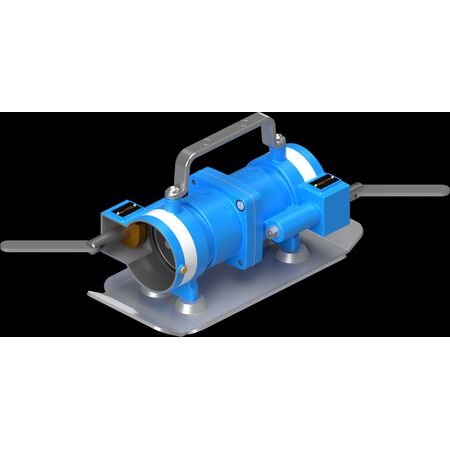

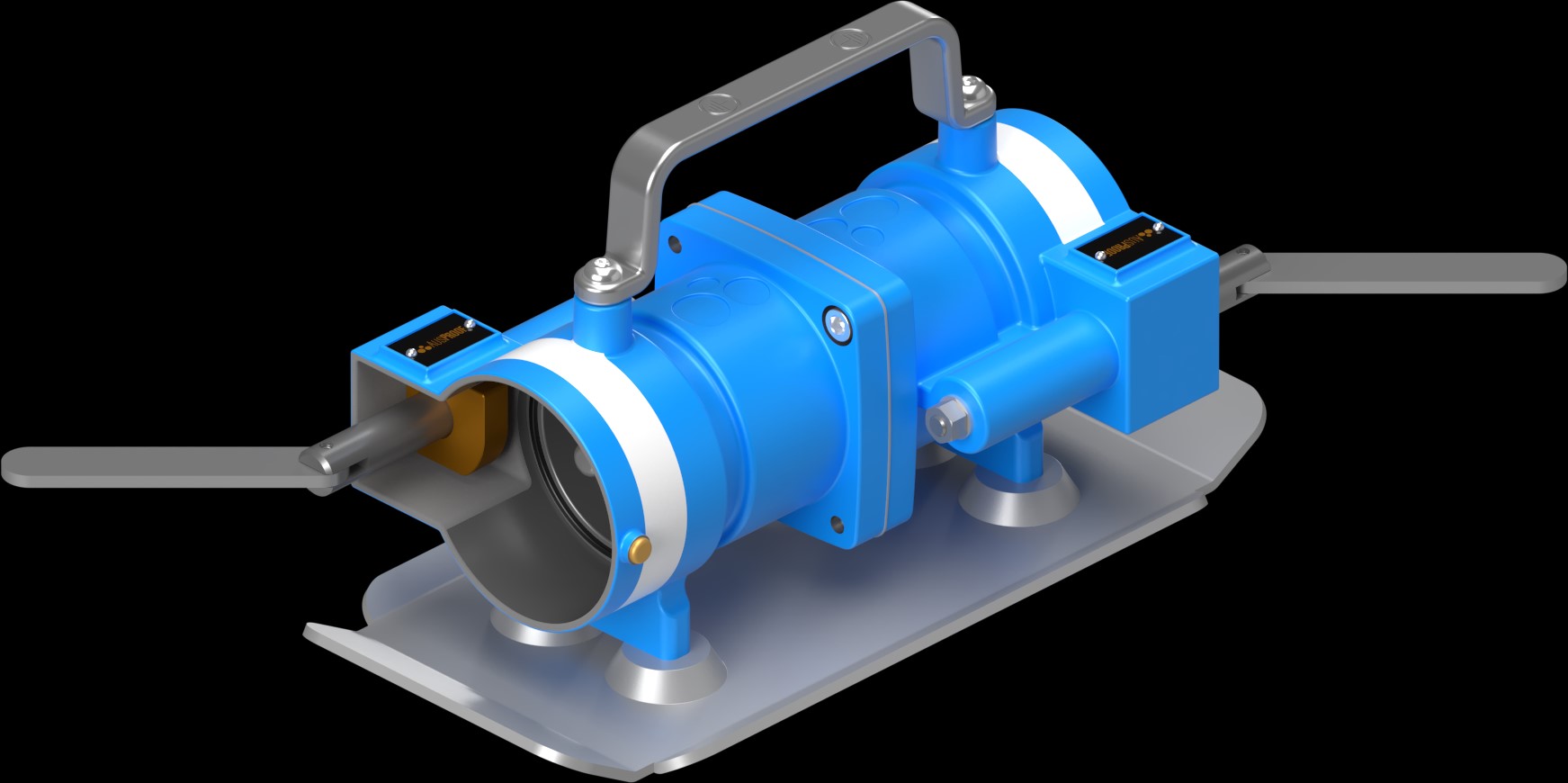

Product Name/Title: PL B2B 1100V 425A 6P Full Assembly
Brand: Ausproof
SKU: RS2467
Alternatively Known As: PL Range Plug and Receptacle Assembly, Ex-rated Industrial Plug, Flameproof Electrical Connector
Technical Specifications
- Operating Voltage: 660 to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 KG
- Receptacle Weight: 10.7 KG
- Dimensions (H x L x W): 150mm x 350mm x 250mm
- Weight: 9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified electricians trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site repairs.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL B2B 1100V 425A 6P Full Assembly is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
