Exhaust Slotted Nut DIN 14441 | Copper-Plated Steel | Reduced Wrench Size | @Pack of 10 | by Wurth

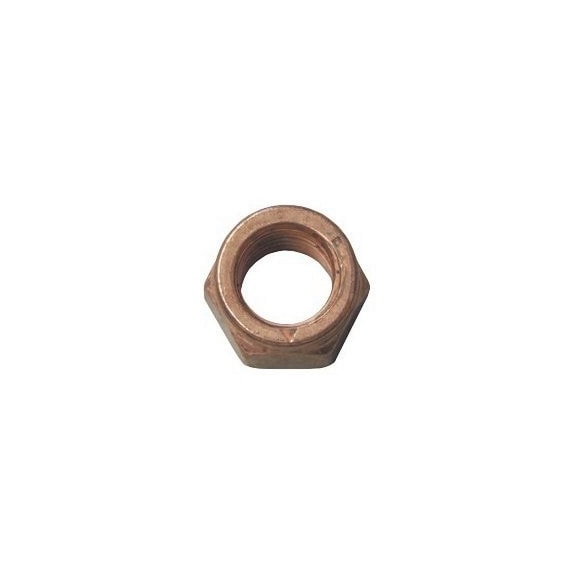

Exhaust Slotted Nut DIN 14441 is designed for secure fastening in automotive exhaust systems, featuring a reduced wrench size for easier installation and a durable copper-plated steel construction for enhanced corrosion resistance. Ideal for mechanics and engineers, this nut ensures reliable performance in high-temperature conditions up to +400 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Exhaust Slotted Nut DIN 14441 | Copper-Plated Steel | Reduced Wrench Size | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 3664
Alternatively Known As: Slotted Exhaust Nut, Locking Exhaust Nut, Copper Plated Lock Nut, DIN 14441 Nut
Technical Specifications
- Thread type x nominal diameter (D): M12
- Collar diameter (d1): 16.5 mm
- Height (h1): 12.5 mm
- Width across flats (s1): 17 mm
- Material: Steel
- Property class: 8
- Surface: Copper plated
- Design: Reduced wrench size
- Thread type: Metric thread
- Pitch: 1.75 mm
- Temperature conditions: Min -70 °C, Max +400 °C
- Dimensions (H x L x W): 12.5mm x 16.5mm x 17mm
- Weight: 0.05 kg
Key Features
- Crushed locking slot promotes locking without additional assistance
- Reduced wrench size design for easier installation
- Heavily copper-plated steel for corrosion resistance
- Standard metric thread pitch of 1.75 mm
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in automotive exhaust systems
- Industrial machinery requiring secure locking nuts
- General engineering applications with metric threads
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Copper plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Exhaust Slotted Nut is available for immediate purchase, ideal for automotive and industrial fastening applications.
