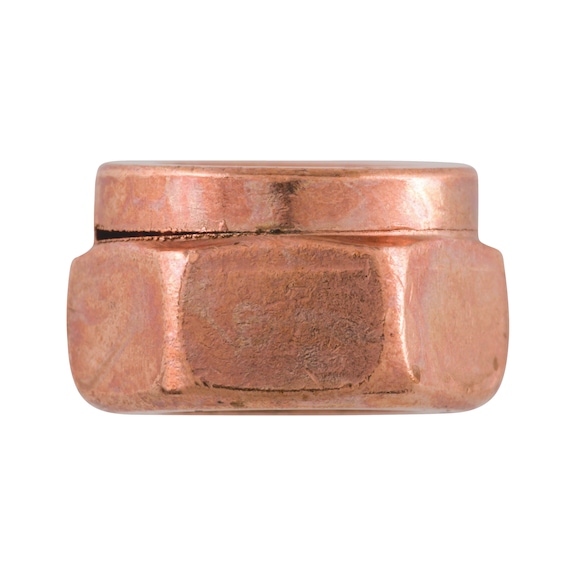

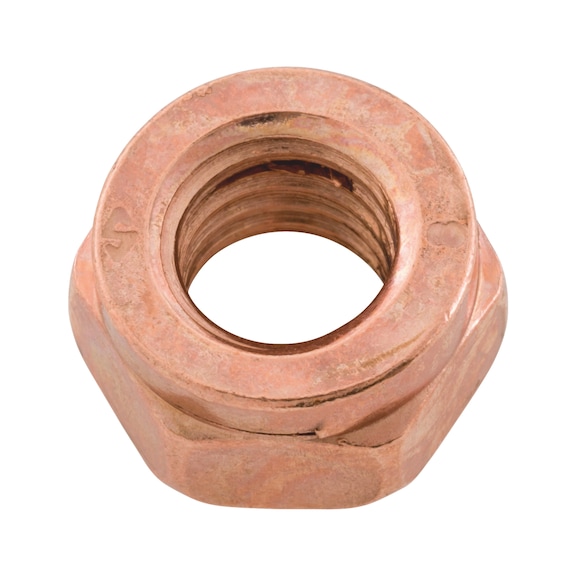

Exhaust Slotted Nut M12 | Copper Plated Steel | DIN 14440 Compliant | @Pack of 10 | by Wurth
Exhaust Slotted Nut M12 is designed for secure locking in automotive exhaust systems and mechanical assemblies. Made from heavily copper-plated steel, it offers excellent corrosion resistance and complies with DIN 14440 standards. Ideal for professional installation, this nut ensures reliable fastening in various engineering applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Exhaust Slotted Nut M12 | Copper Plated Steel | DIN 14440 Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 3654
Alternatively Known As: Slotted Exhaust Nut, Copper Plated Locking Nut, DIN 14440 Nut, M12 Lock Nut

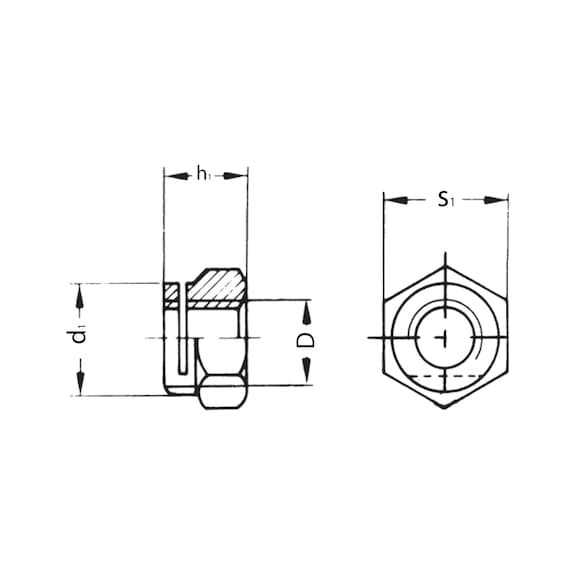

Technical Specifications
- Thread type x nominal diameter (D): M12
- Collar diameter (d1): 18.5 mm
- Height (h1): 12.5 mm
- Width across flats (s1): 19 mm
- Material: Steel
- Property class: 8
- Surface: Copper plated
- Design: Normal wrench size
- Thread type: Metric thread
- Temperature conditions: Min -70 °C, Max +400 °C
- Dimensions (H x L x W): 12.5mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Crushed locking slot promotes locking without additional assistance
- Standard metric thread pitch
- Heavily copper-plated steel for corrosion resistance
- Normal wrench size compliant with DIN 14440
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure locking.
Applications
- Mechanical assemblies requiring secure locking nuts
- Automotive exhaust systems
- Industrial machinery fastening
- General engineering applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Copper plating enhances corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Exhaust Slotted Nut M12 Copper Plated Steel DIN 14440 is available for immediate purchase, ideal for mechanical and automotive fastening applications.
