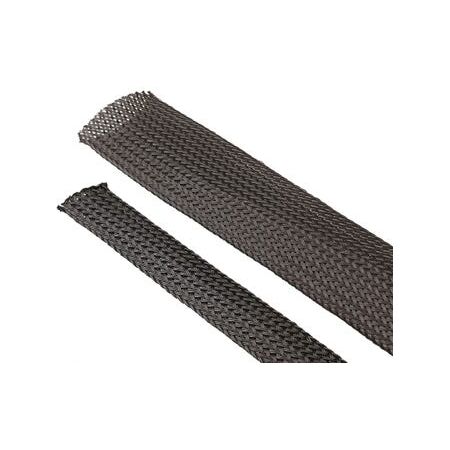

Expandable Polyester Braid Sleeve 12-22mm 100m Cabac
Cabac expandable polyester braid sleeve, 12-22mm, 100m. Heat-resistant, self-extinguishing cable protection to IEC 684-3-49.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Internal Diameter: 15mm
- Minimum Internal Diameter: 12mm
- Maximum Internal Diameter: 22mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 100m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 22mm x 100000mm x 22mm
- Weight: 0.5 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 12mm to 22mm
- Contracts in length while expanding in diameter
- Mechanical protection against wear and surface abrasions
- Heat resistant and self-extinguishing polyester material
- Resistant to most aggressive chemicals
- Easy installation with ability for wire breakouts along length
- Available in bulk reels for custom length dispensing
Professional Installation Requirements
- No special professional installation required; however, proper handling and cutting tools are recommended for clean installation.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Industrial and commercial wiring protection
- Automotive and machinery wiring harness protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable and reusable cable protection reduces cable replacement waste
- Heat resistant and self-extinguishing properties enhance safety and reduce fire risk
- Chemical resistance extends product lifespan, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 12-22mm 100m is available now for immediate purchase. Ideal for cable management and protection in industrial, commercial, and automotive applications.
FAQ
Q: What cable diameter range does this braid sleeve support?
A: It expands to accommodate cable bundles from 12mm to 22mm in diameter with a 1:2 expansion ratio.
Q: Is this braid sleeve suitable for industrial and automotive wiring?
A: Yes. It is manufactured from polyester with heat resistance, chemical resistance, self-extinguishing properties, and conforms to IEC684-349 and UL224 standards for demanding applications.
Pair this sleeve with a cable sleeve where larger cable bundles require additional mechanical protection.
Install fibreglass sleeving where cables require additional protection in high-temperature environments.
Use spiral cable management to organise cable bundles before installing the expandable braid sleeve.
