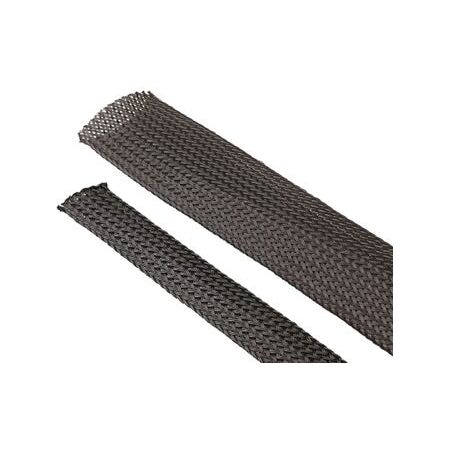

Expandable Polyester Braid Sleeve 45-73mm 50m Cabac
Cabac expandable polyester braid sleeve, 45-73mm, 50m. Heat-resistant, self-extinguishing cable protection to IEC 684-3-49.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Internal Diameter: 50mm
- Minimum Internal Diameter: 45mm
- Maximum Internal Diameter: 73mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 50m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 50mm x 50000mm x 50mm
- Weight: 0.5 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 45mm to 73mm
- Contracts in length while expanding diameter
- Mechanical protection against wear and abrasion
- Heat resistant and self-extinguishing
- Resistant to most aggressive chemicals
- Allows individual wire breakouts along the harness
Professional Installation Requirements
- No special professional installation required; easy to install by hand for bundling and protecting cables.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Industrial and commercial wiring protection
- Automotive and machinery wiring harness protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve longevity of cables
- Chemical resistance reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 45-73mm 50m is available now for immediate purchase. Ideal for cable management and protection in industrial, commercial, and residential applications.
FAQ
Q: What cable diameter range does this braid sleeve support?
A: It expands to accommodate cable bundles from 45mm to 73mm in diameter with a 1:2 expansion ratio.
Q: Is this braid sleeve suitable for harsh industrial environments?
A: Yes. It is manufactured from polyester with heat resistance, chemical resistance, self-extinguishing properties, and conforms to IEC684-349 and UL224 standards, making it suitable for demanding industrial, commercial, and automotive applications.
Pair this sleeve with a cable sleeve for protecting larger cable bundles in demanding installations.
Install fibreglass sleeving where additional high-temperature cable protection is required.
Use spiral cable management to organise cable bundles before fitting the expandable braid sleeve.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
