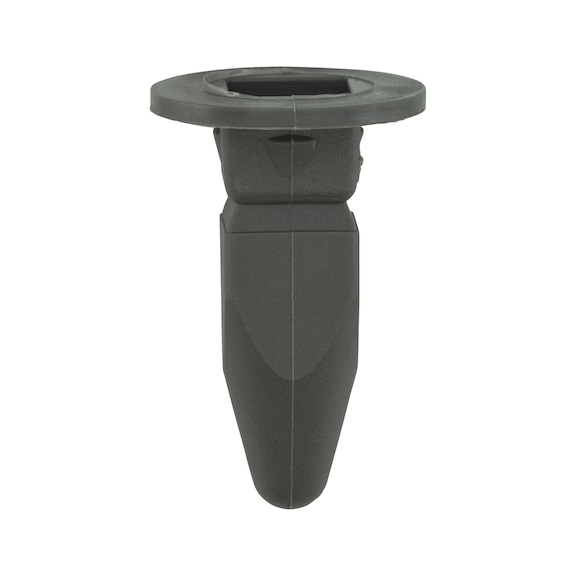

Expanding Nut Head Round Tip Pointed | One-Sided Assembly | Corrosion Resistant | @Pack of 10 | by Wurth
Expanding Nut Head Round Tip Pointed is designed for automotive sheet metal fastening, featuring a one-sided assembly and corrosion-resistant material. Ideal for securing front and rear bumpers, this nut ensures a high retention force and can be reused after removal, making it perfect for professional installations in vehicles like Audi, Seat, Skoda, and Volkswagen.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

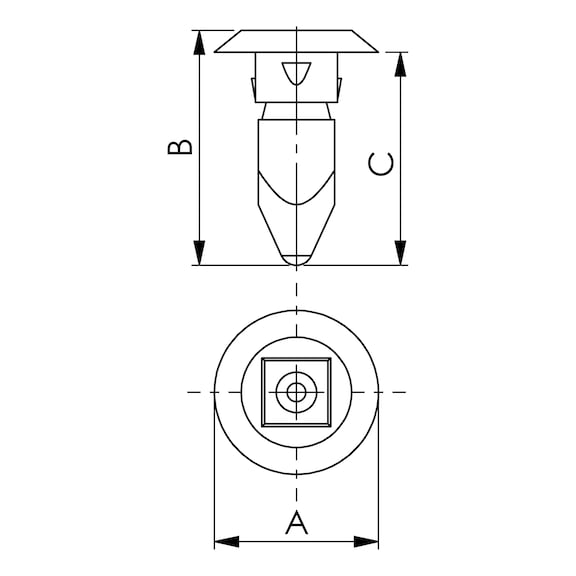

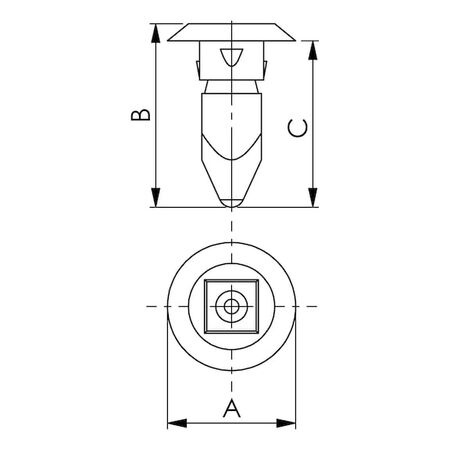

Technical Specifications
- Suitable for screw diameter: 4.8 mm
- Min./max. drill hole diameter: 8.00 mm
- Min./max. attachment thickness: 0.70-0.90 mm
- Head diameter: 16.00 mm
- Length below head: 24.00 mm
- Overall height: 24.70 mm
- Material: PA 6 - Polyamide
- Colour: Grey
- Suitable for vehicle manufacturers: Audi, Seat, Skoda, Volkswagen
- Corresponds to original spare part number: 357868143
- Installation location: Front bumper, Rear bumper
- Dimensions (H x L x W): 24.7mm x 24mm x 16mm
- Weight: 0.02 kg
Key Features
- One-sided assembly with nut locking function
- Cannot be twisted during installation
- Corrosion resistant
- High retention force and secure seat in the component
- Flange can serve as a spacer
- No direct contact between sheet metal and screw
- Reusable after removal
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fastening and safety compliance.
Applications
- Fastening sheet metal components
- Suitable for front and rear bumper installation
- Compatible with vehicles from Audi, Seat, Skoda, Volkswagen
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable design reduces waste
- Corrosion resistance extends product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Expanding Nut Head Round Tip Pointed 10 PCS is available for immediate purchase, ideal for automotive sheet metal fastening applications.
