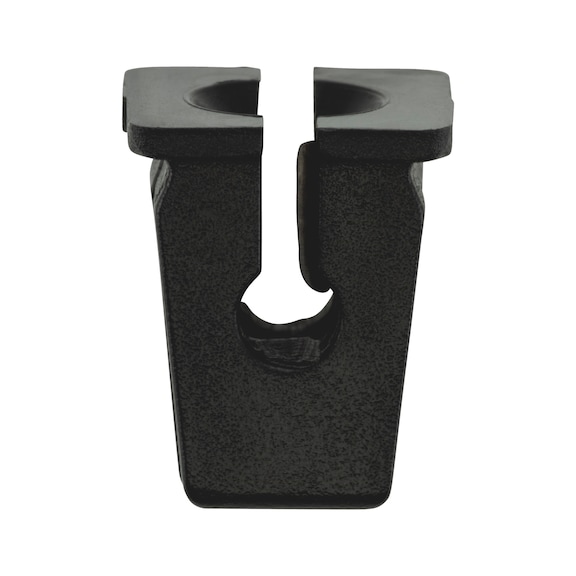

Expanding Nut with Open Screw-in Area | One-Sided Assembly | Corrosion Resistant | @Pack of 10 | by Wurth
Expanding Nut with open screw-in area is designed for one-sided assembly, making it perfect for automotive repairs and sheet metal fastening. With its corrosion-resistant material and high retention force, this nut ensures a secure fit and can be reused after removal, providing both convenience and durability for mechanical fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for screw diameter: 4.8 mm
- Min./max. drill hole diameter: 8.00-8.10 mm
- Min./max. attachment thickness: 0.70-1.50 mm

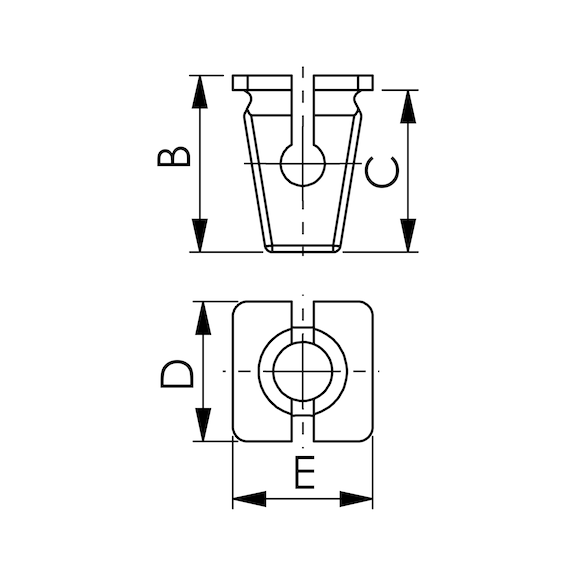

- Width of head (D): 7.20 mm
- Length of head (E): 7.00 mm
- Length below head (C): 11.50 mm
- Overall height (B): 12.00 mm
- Colour: Black
- Material: PA GF - Polyamide glass fiber reinforced
- Suitable for vehicle manufacturer: Opel/Vauxhall
- Corresponds to original spare part number: 90230846
- Installation location: Universal
- Dimensions (H x L x W): 12mm x 11.5mm x 7.2mm
- Weight: 0.02 kg
Key Features
- One-sided assembly with nut locking function
- Corrosion resistant
- High retention force and secure seat in the component
- Flange can serve as a spacer
- No direct contact between sheet metal and screw
- Reusable after removal
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fastening and safety.
Applications
- Fastening sheet metal with ST screws
- Automotive repairs and assembly
- General mechanical fastening requiring one-sided assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reusable design reduces waste
- Corrosion resistance extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Expanding Nut with open screw-in area 10 PCS is available for immediate purchase, ideal for automotive and sheet metal fastening applications.
