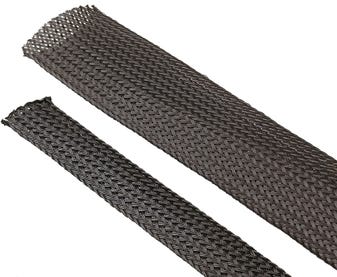

Expanding Polyester Braid Sleeve 15-27mm | 100m Length | Durable & Flexible | Black by Cabac
Expanding polyester braid sleeve with a 15-27mm diameter and 100m length—ideal for cable management and protection. Built for versatility and durability, it offers flexibility and resistance to wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Expanding Polyester Braid Sleeve 15-27mm | 100m Length | Durable & Flexible | Black by Unbranded
Brand: Cabac
SKU: EPBS20
Alternatively Known As: Polyester Braided Cable Sleeve, Expandable Cable Sleeve, Cable Management Sleeve, Protective Cable Braid, Heat Resistant Cable Sleeve
Technical Specifications
- Nominal Internal Diameter: 20mm
- Minimum Internal Diameter: 15mm
- Maximum Internal Diameter: 27mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 100m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 20mm x 100000mm x 20mm
- Weight: 0.5 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 15mm to 27mm
- Contracts in length to allow expansion of internal diameter
- Mechanical protection against wear and surface abrasions
- Resistant to most aggressive chemicals
- Heat resistant and self-extinguishing polyester material
- Allows individual wires to pass through for breakouts
Professional Installation Requirements
- Installation is straightforward and can be performed by trained personnel; no special tools required but proper handling is recommended to maintain sleeve integrity.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Industrial and commercial wiring protection
- Automotive and machinery cable protection
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve cable lifespan, reducing replacement frequency
- Chemical resistance minimizes environmental contamination from damaged cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 15-27mm 100m is available now for immediate purchase. Ideal for cable management and protection in industrial, commercial, and residential applications.
