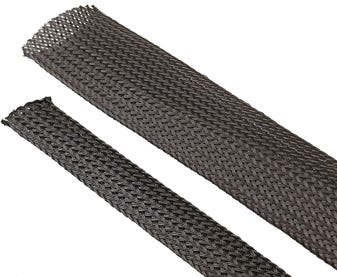

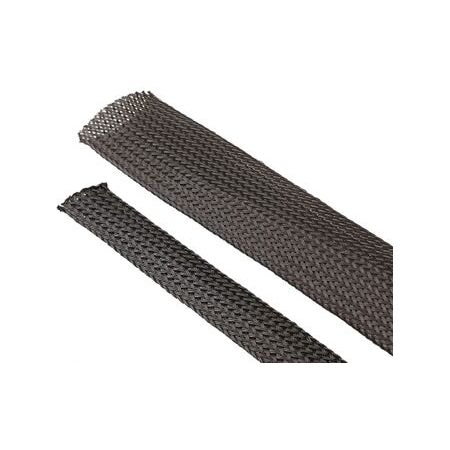

Expanding Polyester Braid Sleeve 35-60mm | 50m Length | Durable & Flexible | Black by Cabac
Expanding polyester braid sleeve with a 35-60mm diameter and 50m length—ideal for cable management and protection. Built for versatility and durability, it offers flexibility and resistance to wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Expanding Polyester Braid Sleeve 35-60mm | 50m Length | Durable & Flexible | Black by Unbranded
Brand: Cabac
SKU: EPBS40
Alternatively Known As: Polyester Braided Cable Sleeve, Expandable Cable Sleeve, Cable Management Sleeve, Protective Cable Braid, Flexible Wire Sleeve
Technical Specifications
- Nominal Internal Diameter: 40mm
- Minimum Internal Diameter: 35mm
- Maximum Internal Diameter: 60mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 50m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 60mm x 50000mm x 60mm
- Weight: 0.5 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 35mm to 60mm with 1:2 expansion ratio
- Contracts in length as diameter expands
- Made from monofilament polyester
- Heat resistant and self-extinguishing
- Resistant to most aggressive chemicals
- Allows individual wire breakouts along the harness length
- Easy to install and use in custom lengths
Professional Installation Requirements
- Installation is straightforward and can be performed by trained personnel; however, professional installation is recommended for complex cable harnesses to ensure optimal protection and compliance.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness creation in industrial and commercial electrical installations
- Mechanical protection for conductors in harsh environments
- Thermal protection for cables exposed to heat
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable polyester material reduces need for frequent replacements
- Chemical resistance extends product life, reducing waste
- Thermal protection helps maintain cable efficiency and longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 35-60mm 50m is available for immediate purchase. Ideal for cable management in industrial, commercial, and residential electrical installations.
