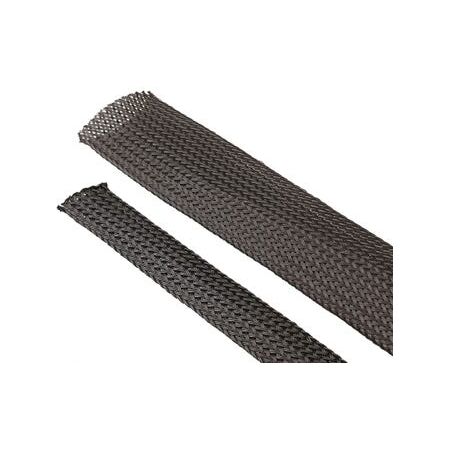

Expanding Polyester Braid Sleeve Durable & Heat Resistant 25-45mm 3m Cabac
Cabac Expanding Polyester Braid Sleeve Durable & Heat Resistant 25-45mm 3m is ideal for floor-level and surface cable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Monofilament Polyester
- Nominal Internal Diameter: 30mm
- Minimum Internal Diameter: 25mm
- Maximum Internal Diameter: 45mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 3 meters
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 3mm x 3000mm x 45mm
- Weight: 0.1 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 25mm to 45mm
- Contracts in length while expanding in diameter
- Heat resistant and self-extinguishing polyester material
- Resistant to most aggressive chemicals
- Allows individual wires to pass through for breakouts
- Provides mechanical protection against wear and abrasion
Professional Installation Requirements
- Installation is straightforward and can be performed by trained personnel; no specialized tools required but proper handling is recommended to maintain sleeve integrity.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Mechanical protection for conductors in industrial and commercial settings
- Suitable for use in environments requiring chemical resistance and thermal protection
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve longevity of cables, reducing replacement frequency
- Chemical resistance minimizes environmental contamination from damaged cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 25-45mm 3m is available for immediate purchase, ideal for cable management in industrial, commercial, and residential electrical installations.
FAQ
Q: What cable diameter range does this braid sleeve support?
A: It expands to accommodate cable bundles from 25mm to 45mm in diameter with a 1:2 expansion ratio.
Q: Is this braid sleeve suitable for demanding electrical installations?
A: Yes. It is manufactured from monofilament polyester with heat resistance, chemical resistance, self-extinguishing properties, and conforms to IEC684-349, UL224, and AS/NZS 3820 requirements.
Pair this sleeve with a cable sleeve for protecting larger cable bundles in industrial installations.
Install fibreglass sleeving where additional high-temperature cable protection is required.
Use spiral cable management to organise cable bundles before fitting the expandable braid sleeve.
