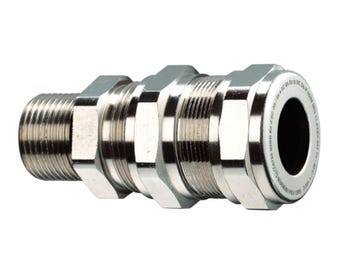

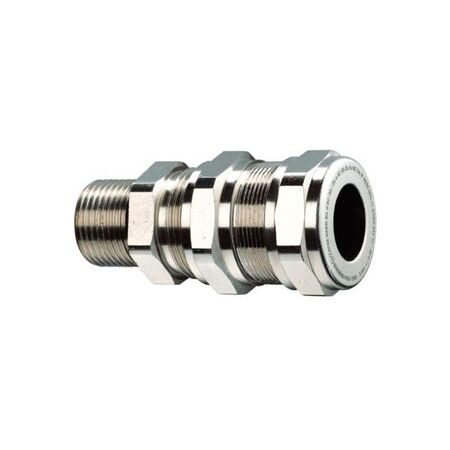

Explosion Proof Cable Gland | Double Compression | 20-32mm Clamping Range | Nickel Plated Brass by Cabac
The Cabac M40 NP Armoured NB 20-32MM is a double compression cable gland designed for explosion-proof and increased safety applications, suitable for various armoured cables with excellent corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M40 NP ARMOURED NB 20-32MM Ex de
Brand: Cabac
SKU: EXN07MMC1
Alternatively Known As: Explosion Proof Cable Gland, Armoured Cable Gland, Ex d Cable Gland, Double Compression Cable Gland
Technical Specifications
- Cable Gland Type: Double compression
- Cable Compatibility: Steel Wire Armoured, Steel Wire Braid, Aluminium Wire Armoured, Steel Tape Armoured
- Protection Type: Ex d (explosion proof), Ex e (increased safety), Ex tD (dust)
- Material: Nickel plated brass
- Cable Clamping Range: 20-32 mm
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.2 kg
Key Features
- Double compression cable gland design
- Suitable for multiple armoured cable types: SWA, SWB, AWA, and Steel Tape Armoured
- Ex d explosion proof, Ex e increased safety, and Ex tD dust protection
- Good corrosion resistance
- Wide cable clamping range
- Nickel plated brass construction
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial electrical installations requiring explosion-proof cable glands
- Use with Steel Wire Armoured (SWA), Steel Wire Braid (SWB), Aluminium Wire Armoured (AWA), and Steel Tape Armoured cables
- Hazardous areas requiring Ex d, Ex e, and Ex tD protection
Standards & Compliance
- Complies with AS/NZS 60079 series for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable nickel plated brass reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life in harsh environments
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac M40 NP Armoured NB 20-32MM Ex d cable gland is available for immediate purchase, ideal for industrial and hazardous area electrical installations.
