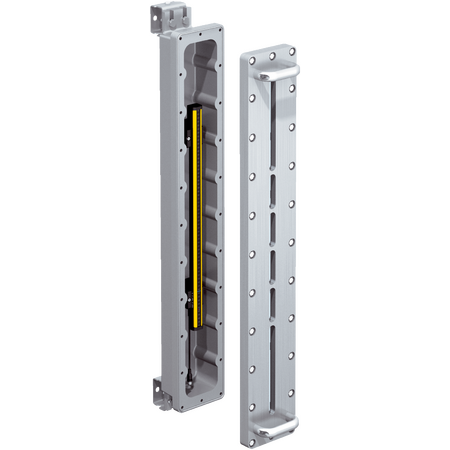

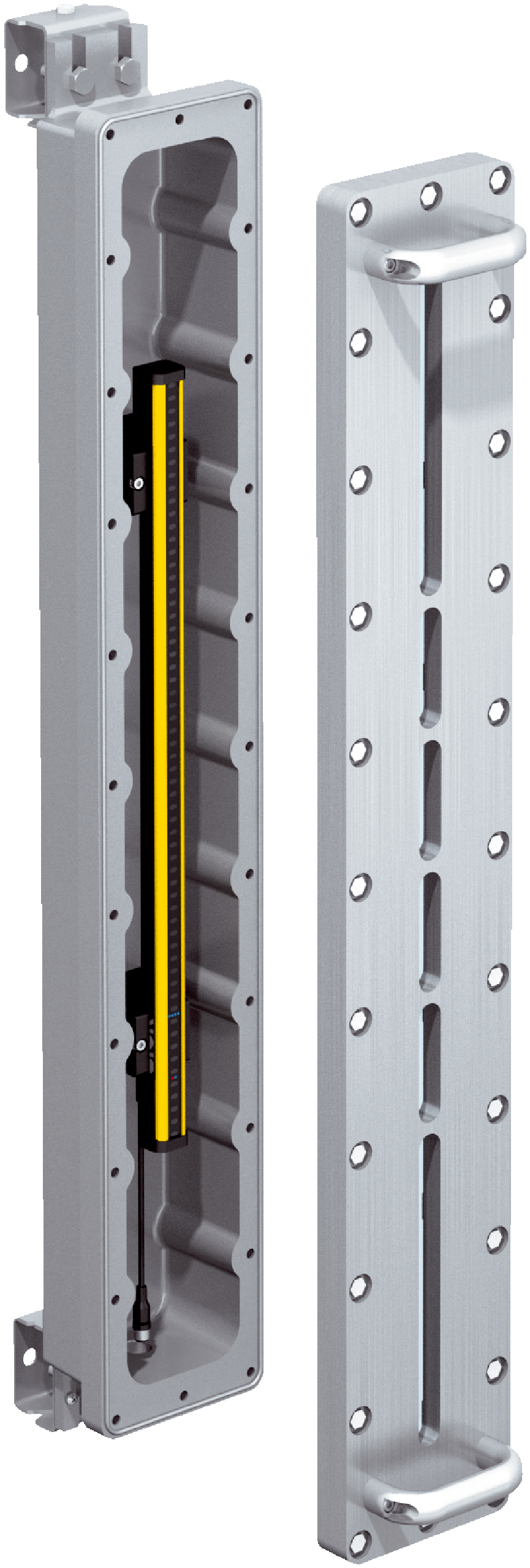

EXS-09D0340A020 | Safety light-beam sensors
The SICK EXS-09D0340A020 is a high-performance safety light-beam sensor designed for explosive areas, offering reliable Type 4 safety with SIL 3 and PL e certifications, suitable for hazardous industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EXS-09D0340A020 | Safety light-beam sensors
Brand: SICK
SKU: 1097720
Alternatively Known As: Safety light beam sensor, Explosion proof light sensor, deTem4 Core Ex sensor, Industrial safety sensor
Technical Specifications
- Product version: deTem4 Core Ex
- Application: Explosive areas
- Ex-approvals: ATEX II 2 G Ex db IIB T6 Gb, II 2 D Ex tb IIIC T56°C Db IP6X, NFPA 70/NEC 500 Class I Div. 1 Groups C and D, Class II Div. 1 Groups E, F and G, Class III Div. 1
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: 0.5 m to 14.2 m
- Number of beams: 3
- Beam separation: 400 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: 5-wire cable, 30 m length, 5 mm diameter, 0.34 mm² conductor cross section
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W
- Housing: Aluminum extruded profile
- Enclosure rating: IP65 and IP66 (IEC 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 142.1mm x 200mm x 161.8mm
- Weight: 37.72 kg
Key Features
- Type 4 safety light-beam sensor with SIL 3 and PL e safety integrity levels
- Near-infrared (NIR), invisible light type
- Optical synchronization with 3 beams and 400 mm beam separation
- Scanning range from 0.5 m to 14.2 m
- Robust aluminum extruded profile housing
- High protection rating IP65 and IP66
- Operating temperature range from -20 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with hazardous area electrical equipment and compliance with explosion protection standards.
Applications
- Explosive areas requiring high safety light-beam sensors
- Industrial automation and safety systems
- Hazardous environments with gas and dust explosion risks
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 1.44 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK EXS-09D0340A020 Safety Light-Beam Sensor is available for immediate purchase, ideal for use in explosive and hazardous industrial environments.
