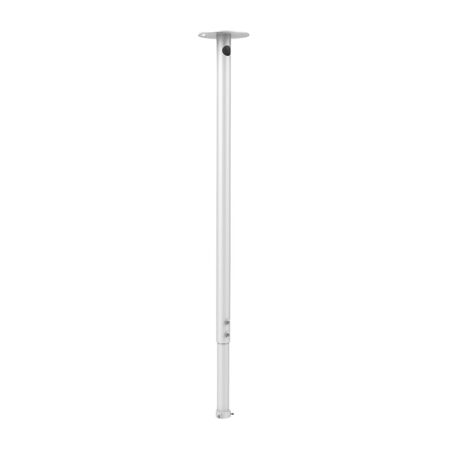

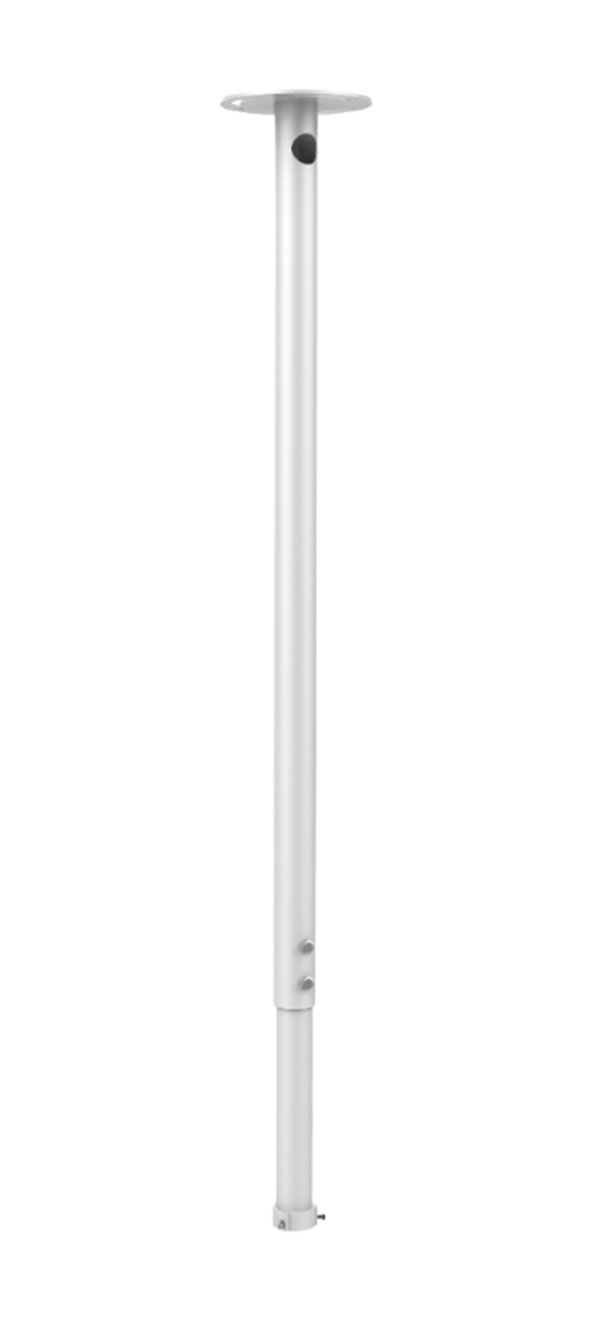

Extendable Pendant Mount White DS-1667ZJ Hikvision
Hikvision extendable pendant mount features a white finish. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1667ZJ Pendant Mount, Extendable PTZ Ceiling Bracket, CCTV Pendant Mount
Technical Specifications
- Model: DS-1667ZJ
- Product Type: Extendable pendant mounting bracket for PTZ cameras
- Material: Zinc-coated steel with sprayed surface treatment
- Finish: Hikvision white
- Adjustable Length: 1500–2500 mm
- Base Diameter: 200 mm
- Maximum Load Capacity: 10 kg
- Safety Feature: Integrated safety-rope hook
- Installation Surface: Flat surface required
- Outdoor Use: Waterproofing measures required
- Dimensions (H x L x W): 2500mm x 200mm x 200mm
- Weight: 10.85 kg
Key Features
- Adjustable pendant length from 1500 mm to 2500 mm
- Designed for Hikvision PTZ surveillance cameras
- Steel construction for structural durability
- White finish suited to CCTV and security installations
- Integrated hook for attaching a safety rope
- 200 mm diameter mounting base
- Supports camera loads up to 10 kg
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Mount the bracket on a flat, structurally sound surface capable of supporting at least three times the combined weight of the bracket and camera. Follow manufacturer instructions and apply suitable waterproofing measures for outdoor installations.
Applications
- Ceiling-mounted PTZ CCTV cameras
- Commercial and industrial security surveillance
- Retail, warehouse and facility monitoring
- Indoor and outdoor video surveillance installations
- High-ceiling security camera deployments
Standards & Compliance
- Applicable to CCTV installations designed and installed with reference to the AS/NZS 62676 series; the bracket itself has no separate product-specific Australian certification identified.
Environmental Benefits
- Steel construction is recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Supports long-term CCTV system operation without powered electronics in the bracket itself
Warranty Information
Hikvision warranty terms vary by product category and authorised distribution channel. Confirm the applicable warranty for this mounting accessory with the Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
