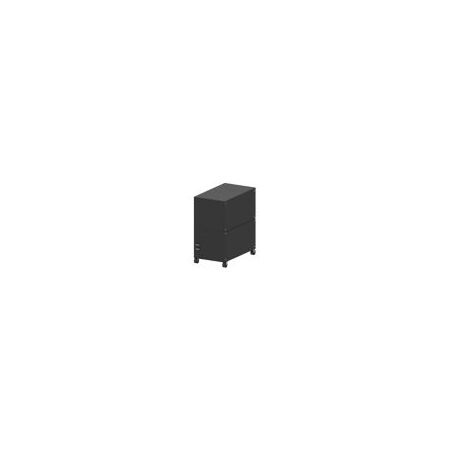

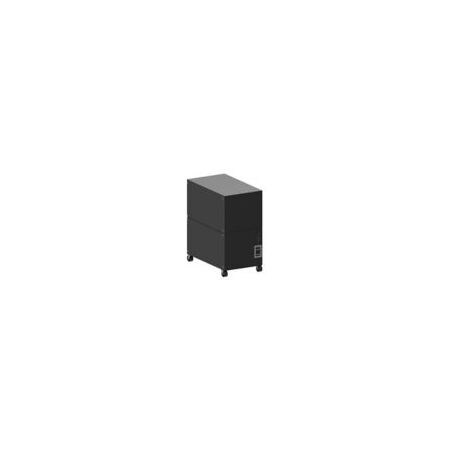

Extended Battery Enclosure 2-Tier | 8 x 200W Lead-Acid Batteries | Free Standing Design by Eaton
Extended battery enclosure with 8 lead-acid maintenance-free batteries, each rated at 200W—ideal for Eaton 9SX UPS systems. Built for data centers and critical power applications, ensuring reliable power continuity with a secure hardwired connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extended Battery Enclosure 2-Tier | 8 x 200W Lead-Acid Batteries | Free Standing Design by Eaton
Brand: Eaton
SKU: 9SXEBC200W96
Alternatively Known As: Eaton 9SX Extended Battery Cabinet, Eaton 9SX Battery Enclosure, UPS Battery Extension Cabinet
Technical Specifications
- Product Type: Extended Battery Enclosure
- Battery Quantity: 8
- Battery Type: Lead-acid maintenance-free (replaceable)
- Battery Rating: 200W per battery
- Construction: Free standing model
- Input Connection: Hardwired/fixed connection
- Battery Form Factor: Block
- Communication: None
- Potential Free Switch Contact: No
- Operating Altitude: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Dimensions (H x L x W): 747mm x 740mm x 425mm
- Weight: 204 kg
Key Features
- Free standing 2-tier stackable battery enclosure
- Houses 8 lead-acid maintenance-free replaceable batteries
- Hardwired/fixed input connection for secure installation
- Designed for use with Eaton 9SX UPS systems
- No auto shutdown or battery management features included
Professional Installation Requirements
- Professional installation by qualified technicians is required due to hardwired connections and battery handling.
Applications
- Used with Eaton 9SX UPS systems for extended battery backup
- Suitable for data centers, server rooms, and critical power applications
- Ideal for environments requiring reliable power continuity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Maintenance-free lead-acid batteries reduce hazardous waste and simplify disposal
- Supports uninterrupted power supply reducing risk of data loss and equipment damage
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX Tower 2/3kVA Extended Battery Enclosure 2-Tier Cabinet is available for immediate purchase, ideal for extending backup power in critical UPS applications.
