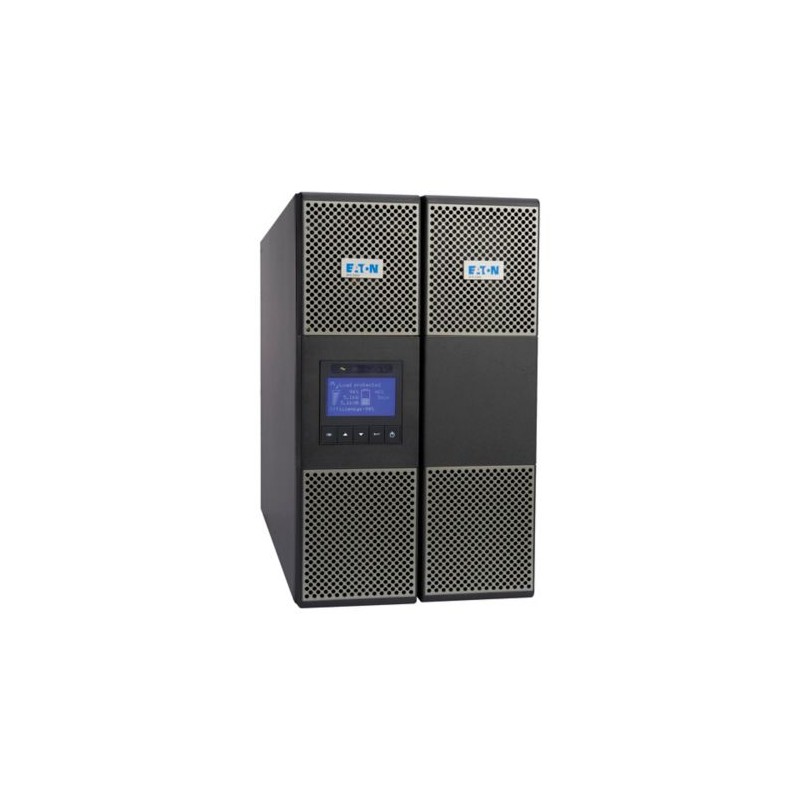

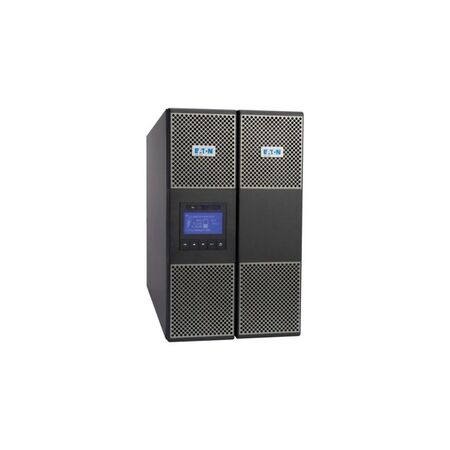

Extended Battery Module for Eaton 9PX UPS | 72V Sealed Lead-Acid | Rack/Tower 2U | by Eaton
The Eaton 9PX Extended Battery Module provides 72V sealed lead-acid batteries and a 2U rack/tower form factor—ideal for data centers and critical IT infrastructure. Built for extended runtime in UPS systems, it includes a rack mounting kit for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extended Battery Module for Eaton 9PX UPS | 72V Sealed Lead-Acid | Rack/Tower 2U | by Eaton
Brand: Eaton
SKU: 9000-00187
Alternatively Known As: Eaton 9PX Extended Battery Module, Eaton 9PX EBM 72V, UPS Battery Extension Module
Technical Specifications
- Battery quantity: 12
- Battery rating: 12 V / 9 Ah
- Battery type: Sealed, lead-acid
- Form factor: Rack/tower
- Rack size: 2U
- Rack mounting kit included
- Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC, ENERGY STAR certified
- Compliances: CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B
- Dimensions (H x L x W): 86.5mm x 605mm x 440mm
- Weight: 39.2 kg
Key Features
- Extended battery module (EBM) for Eaton 9PX UPS
- 72V sealed lead-acid batteries
- Rack/tower form factor with 2U height
- Includes rack mounting kit for easy installation
- Comprehensive package with power cable, detection cable, link plate, and guides
Professional Installation Requirements
- Professional installation by a qualified electrician or UPS technician is recommended to ensure proper integration and safety.
Applications
- Data centers and server rooms requiring extended battery backup
- Rack or tower UPS systems needing additional runtime
- Critical IT infrastructure protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed lead-acid batteries are recyclable and designed for safe disposal
- Energy Star certified contributing to energy efficiency
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 9PX EBM 2kVA/3kVA 72V 2U Rack/Tower Extended Battery Module is available now for immediate purchase. Ideal for extending runtime in critical UPS applications.
