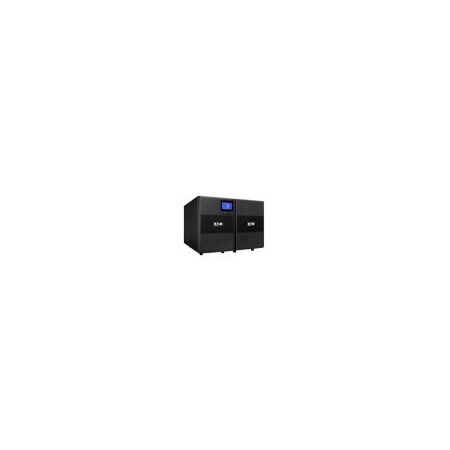

Extended Battery Module for Eaton 9SX UPS | Sealed Lead-Acid | 12V/9Ah | Free Standing Tower by Eaton
The Eaton 9SX Tower EBM 48V is an extended battery module designed for Eaton 9SX UPS systems, featuring sealed lead-acid batteries for maintenance-free operation and a 12V/9Ah rating. Ideal for data centers and telecommunications, it ensures extended runtime and reliable backup power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extended Battery Module for Eaton 9SX UPS | Sealed Lead-Acid | 12V/9Ah | Free Standing Tower by Eaton
Brand: Eaton
SKU: 9000-00353
Alternatively Known As: Eaton 9SX Extended Battery Module, Eaton 9SX EBM 48V, UPS Battery Pack, Eaton UPS Battery Extension
Technical Specifications
- Battery Type: Sealed, lead-acid
- Battery Quantity: 8
- Battery Rating: 12 V / 9 Ah
- Form Factor: Tower
- Construction Type: Free standing model
- Includes: Extended battery module, EBM power cable, EBM detection cable, Quickstart guide
- Compatible with: Eaton 9SX1500I UPS
- Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC
- Compliances: CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B
- Dimensions (H x L x W): 252mm x 387mm x 160mm
- Weight: 24.5 kg
Key Features
- Extended battery module (EBM) designed for Eaton 9SX UPS
- Sealed lead-acid batteries for maintenance-free operation
- Includes EBM power cable and detection cable
- Free standing tower form factor for flexible placement
- Battery rating: 12 V / 9 Ah, 8 batteries in total
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper integration with Eaton 9SX UPS systems and compliance with electrical safety standards.
Applications
- Backup power supply for Eaton 9SX1500I UPS systems
- Data centers and server rooms requiring extended runtime
- Telecommunications and network infrastructure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed lead-acid batteries reduce risk of leaks and environmental contamination
- Extends UPS runtime, supporting energy-efficient power management
Warranty Information
Warranty terms as provided by Eaton, typically including coverage against manufacturing defects for a specified period.
Available Now
The Eaton 9SX Tower EBM 48V (1.5kVA) extended battery module is available now for immediate purchase. Ideal for extending backup power duration in critical UPS applications.
