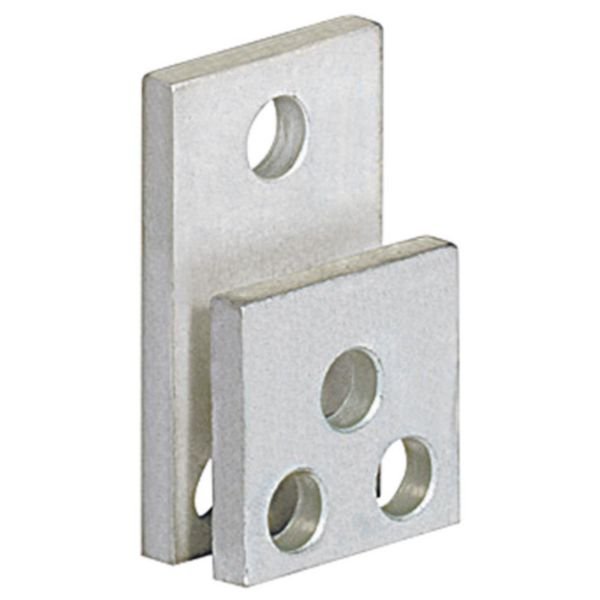

Extended Front Terminals for DPX 1250/1600 | 1600 A Rated | Cage Terminal Connection | Padlock Safety Feature | @Each of 1 | by Legrand
Extended front terminals for DPX 1250/1600 are designed to support up to 1600 A rated operation current, making them ideal for electrical switchboards and power cabinets. With a cage terminal connection and integrated padlock for safety, these terminals ensure compliance with IEC 60947-3 standards, providing reliable performance in industrial and commercial electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extended Front Terminals for DPX 1250/1600 | 1600 A Rated | Cage Terminal Connection | Padlock Safety Feature | @Each of 1 | by Legrand
Brand: Legrand
SKU: 026268
Alternatively Known As: Extended front terminals for DPX 1250, DPX 1600 terminals, Legrand DPX 1600 front terminals, DPX 1250/1600 busbar terminals
Technical Specifications
- Busbar thickness: 12-24 mm
- Busbar width: 50 mm
- Suitable for flat rail
- Width clamp: 50 mm
- Max conductor cross section: 600 mm²
- Max rated operation current Ie: 1600 A
- Suitable for round conductor connection: No
- Suitable for sector conductor connection: Yes
- Suitable for strip conductor connection: No
- Dimensions (H x L x W): 150mm x 250mm x 200mm
- Weight: 5 kg
Key Features
- Extended front terminals designed for DPX 1250/1600 isolating switches
- Supports up to 1600 A rated operation current
- Connection with cage terminals
- Padlock integrated in the handle for safety
- Supplied with terminal shields
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
- Long terminals for 1600 A with max 3 bars per pole
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with DPX 1250/1600 switchgear.
Applications
- Electrical switchboards and power cabinets
- Circuit breaker and moulded case switch installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical distribution reducing energy losses
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand Extended Front Terminals (4) for DPX 1250/1600 - 1600 A are available for immediate purchase, ideal for upgrading or maintaining industrial and commercial electrical switchboards.
