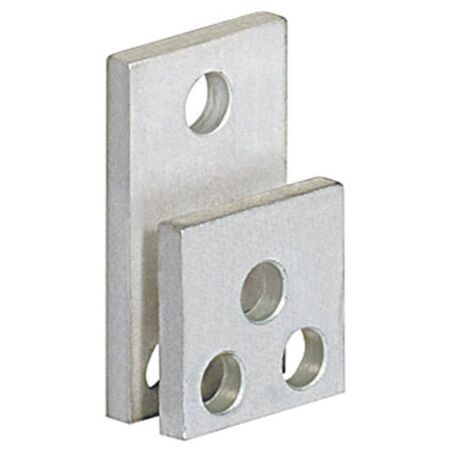

Extended Front Terminals for DPX 1250 1600 630-1250 A Flat Rail Compatible Legrand

BRAND: Legrand
SKU: 26267
$274.30 List price: $341.90
1 EA ($274.30 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Extended front terminals designed for DPX 1250 1600 isolating switches, supporting rated currents from 630 to 1250 A.
Technical Specifications
  • Busbar thickness: 12-24 mm
  • Busbar width: 50 mm
  • Max conductor cross section: 600 mm²
  • Max rated operation current Ie: 1600 A
  • Suitable for flat rail connection
  • Suitable for sector conductor connection
  • Not suitable for round or strip conductor connections
  • Dimensions (H x L x W): 150mm x 250mm x 200mm
  • Weight: 5 kg
Key Features
  • Extended front terminals designed for DPX 1250/1600 isolating switches
  • Supports rated currents from 630 to 1250 A
  • Compatible with flat rail connections
  • Busbar thickness compatibility from 12 to 24 mm
  • Busbar width of 50 mm
  • Max conductor cross section of 600 mm²
  • Suitable for sector conductor connection
  • Padlock integrated in the handle for safety
  • Supplied with terminal shields
  • Conforms to IEC 60947-3 standards
  • Category of use AC 23 A
  • Accepts electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with high current isolating switches and compliance with local electrical standards.
Applications
  • Electrical switchboards and power cabinets
  • Circuit breaker and moulded case switch installations
  • Industrial and commercial electrical distribution systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Enhances electrical safety reducing risk of faults and electrical fires
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Extended Front Terminals (4) for DPX 1250/1600 are available for immediate purchase, ideal for upgrading or maintaining industrial and commercial switchboard installations.
