Extended Rotary Handle Type E to Suit NM8N 400-630A MCCB Chint

BRAND: CABAC
SKU: 269674
$137.40 List price: $183.20
+ −
30 Days Return Electricians Unlock Trade Access

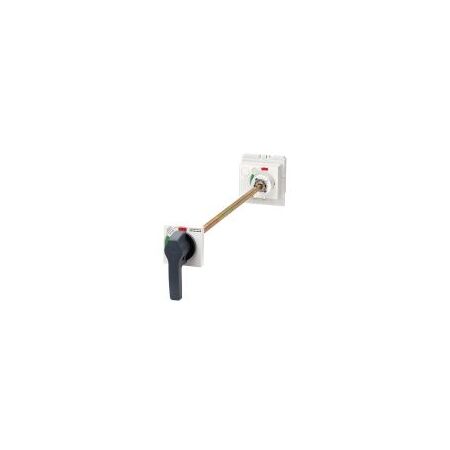

Chint extended (door mount) rotary handle type E to suit NM8N 400-630A frame MCCB. Ideal for through-door operation of the MCCB.

Alternatively Known As: Door-Mounted MCCB Rotary Handle, Extended Rotary Operator, Through-Door MCCB Handle

Technical Specifications
  • Compatible MCCB: CHINT NM8N 400A and 630A frame MCCBs
  • Handle Type: ERH extended rotary handle, Type E
  • Shaft Length: 500mm standard
  • Protection Degree: IP50
  • Operating Positions: Open, closed and free trip
  • Locking: OFF-position locking for 1 to 3 padlocks
  • Padlock Diameter: 5-8mm
  • Door Function: Integrated door interlock and emergency unlocking
  • Material: Insulated polymer handle and metal transmission shaft
  • Dimensions (H x L x W): 160mm x 500mm x 122mm
  • Weight: 0.5 kg
Key Features
  • Enables through-door operation of compatible NM8N MCCBs
  • Suitable for NM8N 400-630A frame circuit breakers with electronic releases
  • Provides clear open, closed and free-trip position indication
  • Integrated interlock helps prevent cabinet-door opening while the MCCB is ON
  • Allows the MCCB to be locked in the OFF position with up to three padlocks
  • Includes a standard 500mm transmission shaft
Professional Installation Requirements
  • Installation should be performed by a licensed electrician or suitably qualified switchboard technician. Isolate and verify the MCCB and switchboard before fitting, and install in accordance with the manufacturer's instructions and applicable wiring and switchgear requirements.
Applications
  • Through-door operation of CHINT NM8N 400A and 630A MCCBs
  • Low-voltage distribution switchboards
  • Industrial control panels and motor-control switchboards
  • Commercial electrical distribution assemblies
Standards & Compliance
  • For use with low-voltage MCCB assemblies to which AS/NZS IEC 60947.2 applies
  • Switchboard installation should be completed in accordance with AS/NZS 3000 and, where applicable, AS/NZS 61439
Environmental Benefits
  • Extends the serviceability of compatible MCCB installations by providing durable remote mechanical operation
  • Reusable mechanical accessory that can reduce replacement of complete switchboard components
  • Insulated polymer and metal components can be separated for responsible end-of-life recycling where local facilities accept them
