Extended Rotary Handle Type M to Suit NM8N MCCB Chint

BRAND: CABAC
SKU: 269673
$137.40 List price: $183.20
+ −
30 Days Return Electricians Unlock Trade Access

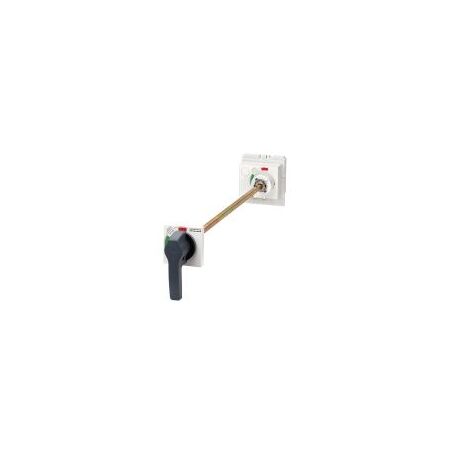

Chint extended (door mount) rotary handle type M to suit NM8N MCCB. Ideal for through-door operation of the MCCB.

Alternatively Known As: Door-Mounted Rotary Handle, Extended MCCB Handle, Through-Door MCCB Operating Handle

Technical Specifications
  • Model: ERH21-M8 M
  • Accessory Type: Extended rotary handle
  • Compatible MCCB: CHINT NM8N-125 magnetic type
  • Shaft Length: 500 mm
  • Protection Degree: IP50
  • Locking: Key lock with OFF-position padlocking provision
  • Operating Indication: Open, closed and free-trip positions
  • Mounting: Door-mounted through-door operation
  • Dimensions (H x L x W): 131.5mm x 500mm x 76mm
  • Weight: 0.5 kg
Key Features
  • Enables operation of the NM8N MCCB through a switchboard or enclosure door
  • Extended 500 mm shaft for remote door-mounted operation
  • Suitable for CHINT NM8N-125 magnetic MCCBs
  • Integrated door-interlock function helps prevent door opening when the breaker is ON
  • Provides open, closed and free-trip position indication
  • Supports locking in the OFF position with up to three padlocks
  • Insulated rotary operating mechanism
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrical worker with the MCCB isolated, following CHINT installation instructions and applicable switchboard requirements.
Applications
  • Through-door operation of CHINT NM8N-125 magnetic MCCBs
  • Motor control centres and distribution switchboards
  • Commercial and industrial switchboards
  • Enclosed electrical panels requiring external MCCB operation
Standards & Compliance
  • Associated NM8N MCCBs are designed to the IEC/EN 60947-2 low-voltage circuit-breaker standard; verify complete installation requirements against AS/NZS IEC 60947.2:2015 and applicable Australian wiring rules.
Environmental Benefits
  • Durable operating mechanism can extend the service life of the associated MCCB and reduce replacement waste
  • Supports maintainable switchboard designs by allowing external operation without routinely opening the enclosure
  • Plastic and metal components may be recyclable at end of service life subject to local recycling facilities
Warranty Information

CHINT warranty policy lists 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
