Extended Rotary Handle Type T to Suit NM8N 125A MCCB Chint

BRAND: CABAC
SKU: 269666
$109.90 List price: $146.50
+ −
30 Days Return Electricians Unlock Trade Access

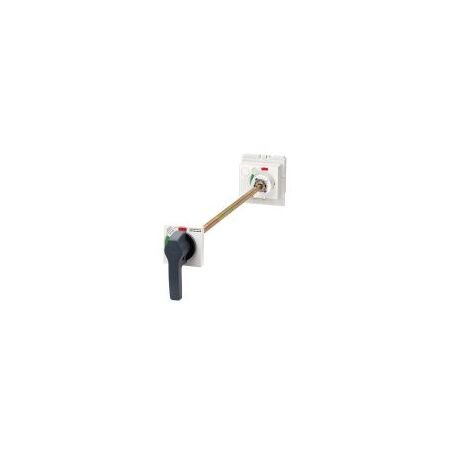

Chint extended (door mount) rotary handle type T to suit NM8N 125A frame MCCB. Ideal for through-door operation of the MCCB.

Alternatively Known As: Door-Mount Rotary Handle, Through-Door MCCB Handle, NM8N 125A Extended Handle

Technical Specifications
  • Compatible MCCB: CHINT NM8N 125A frame
  • Accessory Type: Extended rotary handle
  • MCCB Release Type: Thermal magnetic
  • Model: ERH21-M8 T
  • Shaft Length: 500 mm standard
  • Ingress Protection: IP50
  • Handle Positions: Open, closed and free trip
  • Locking: OFF-position padlock provision for 1 to 3 padlocks
  • Padlock Diameter: 5 to 8 mm
  • Door Interlock: Integrated cabinet door interlock
  • Dimensions (H x L x W): 131.5mm x 153mm x 76mm
  • Weight: 0.26 kg
Key Features
  • Provides through-door operation of compatible NM8N 125A MCCBs
  • Allows the MCCB to be opened, closed and reclosed from the switchboard door
  • Includes a 500 mm shaft for extended mounting arrangements
  • Provides open, closed and free-trip position indication
  • Supports OFF-position locking with up to three padlocks
  • Integrated door interlock helps prevent the cabinet door opening while the MCCB is ON
  • Reliable insulated construction for switchboard applications
Professional Installation Requirements
  • Installation should be performed by a licensed electrician or suitably qualified switchboard technician with the circuit isolated. Fit and adjust the handle in accordance with CHINT installation instructions and applicable Australian wiring and switchboard requirements.
Applications
  • Through-door operation of CHINT NM8N 125A thermal-magnetic MCCBs
  • Low-voltage distribution switchboards
  • Industrial control panels
  • Commercial electrical switchboards
  • Motor and equipment control panels using compatible NM8N MCCBs
Standards & Compliance
  • Applicable to installations using low-voltage circuit-breakers designed to IEC 60947-2, with the Australian and New Zealand adoption referenced as AS/NZS IEC 60947.2. Verify the complete switchboard assembly and product markings for local compliance requirements.
Environmental Benefits
  • Durable mechanical construction supports extended service life and can reduce replacement waste
  • Metal and engineering-plastic components are suitable for recovery and recycling through established electrical equipment recycling streams
  • Mechanical operation requires no auxiliary electrical power during normal use
Warranty Information

CHINT low-voltage apparatus is generally covered for 27 months from the date of manufacture when purchased through authorised sales channels, although contract-specific terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
