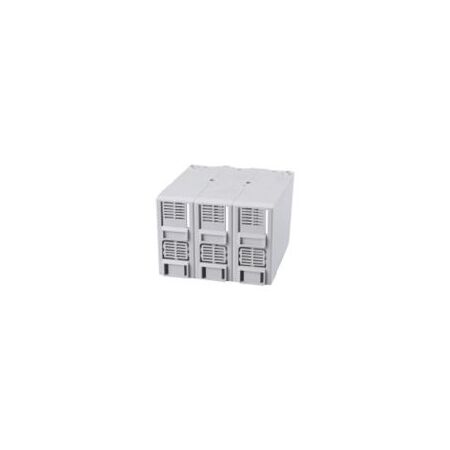

Extended Terminal Cover 3P to Suit NM8N 125A MCCB Chint
Chint extended terminal cover (shroud) for 3P NM8N 125A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TCE21-M8-3P Long Terminal Cover, MCCB Terminal Shroud, Extended Terminal Shroud
Technical Specifications
- Compatible Circuit Breaker: CHINT NM8N 125A frame MCCB
- Number of Poles: 3P
- Accessory Type: Long or extended terminal cover
- CHINT Accessory Code: TCE21-M8 3P
- Protection Function: Covers exposed main terminals and helps prevent phase-to-phase short circuits
- Protection Degree: IP40
- Quantity: Set of 2 covers
- Material: Insulating moulded plastic
- Dimensions (H x L x W): 60mm x 90mm x 70mm
- Weight: 0.219 kg
Key Features
- Designed specifically for CHINT NM8N 125A frame 3-pole MCCBs
- Insulates exposed line and load terminals
- Extended design accommodates front wiring and larger cable lugs
- Helps reduce accidental contact with live terminal areas
- Knock-out openings support various lug and cable arrangements
- Suitable for switchboard and industrial power-distribution applications
Professional Installation Requirements
- Installation and any associated switchboard work should be completed by a licensed electrician or suitably qualified electrical tradesperson with the circuit isolated and verified de-energised. Install in accordance with the MCCB manufacturer's instructions and applicable Australian wiring requirements.
Applications
- Switchboards
- Industrial power-distribution equipment
- Commercial electrical panels
- Motor-control and protection assemblies
- Retrofitting terminal protection to CHINT NM8N 125A 3-pole MCCBs
Standards & Compliance
- Used with MCCB assemblies covered by AS/NZS IEC 60947.2 for low-voltage circuit breakers
- Installation and switchboard integration should comply with AS/NZS 3000 and, where applicable, AS/NZS 61439
Environmental Benefits
- Durable insulating component can remain in service for the life of the MCCB, reducing replacement waste
- Helps protect terminals and cable connections from accidental damage, supporting longer equipment service life
Warranty Information
CHINT's general warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when supplied through authorised sales channels; contract terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
