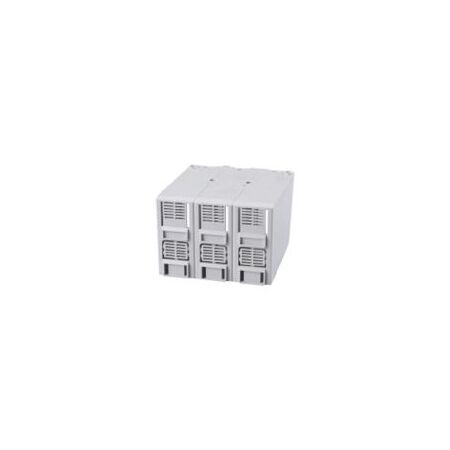

Extended Terminal Cover 3P to Suit NM8N 250A MCCB Chint
Chint extended terminal cover (shroud) for 3P NM8N 250A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT NM8N-250 3P long terminal cover, MCCB terminal shroud, extended line and load terminal cover, CHINT 269696
Technical Specifications
- Product Type: Extended or long terminal cover
- Compatible MCCB: CHINT NM8N 250A frame
- Pole Configuration: 3P
- Accessory Model: NM8N-TCE22-M8-3P
- CHINT Reference: 269696
- Function: Insulates and shrouds exposed line and load terminals
- Material: Moulded insulating electrical-grade plastic
- Pack Format: Two terminal covers
- Cover Dimensions: 361 mm x 105 mm x 88 mm
- Dimensions (H x L x W): 88mm x 361mm x 105mm
- Weight: 0.38 kg
Key Features
- Designed specifically for CHINT NM8N 250A frame MCCBs
- Suitable for 3-pole NM8N circuit breakers
- Provides extended insulation over exposed line and load terminals
- Improves protection against accidental contact with energised terminals
- Suitable for use in low-voltage switchboards and distribution assemblies
- Manufacturer-matched accessory for correct mechanical fit
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified switchboard professional with the switchboard isolated, tested dead and installed in accordance with the MCCB manufacturer's instructions and applicable Australian wiring and assembly requirements.
Applications
- Low-voltage switchboards
- Main switchboards and distribution boards
- Commercial and industrial power distribution assemblies
- Terminal insulation for CHINT NM8N 250A 3P MCCBs
- Replacement or retrofit of missing NM8N terminal shrouds
Standards & Compliance
- Applicable to completed low-voltage switchboard assemblies designed and verified to AS/NZS 61439.1 and AS/NZS 61439.2
- The compatible NM8N MCCB product family is designed to IEC 60947-2; compliance of the completed installation must be assessed by the switchboard manufacturer or installer
Environmental Benefits
- Durable moulded insulating construction supports extended service life and reduces replacement waste
- Protects MCCB terminals and helps maintain the serviceability of the switchboard assembly
- Plastic accessory components should be separated and directed to appropriate electrical or plastics recycling streams where local facilities accept them
Warranty Information
Specific warranty duration for this terminal-cover accessory was not published. Warranty claims are subject to CHINT Australia or the authorised distributor's applicable product warranty terms.
Available Now
Available through authorised CHINT distributors in Australia.
