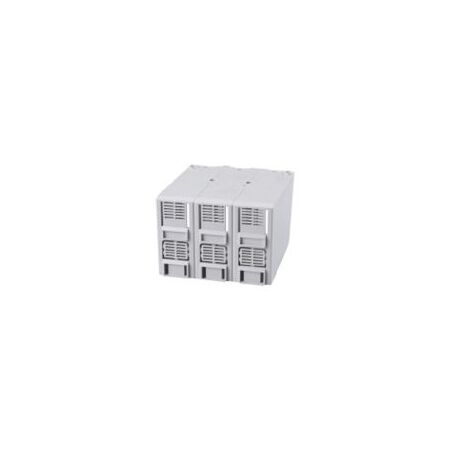

Extended Terminal Cover 3P to Suit NM8N 400-630A MCCB Chint

BRAND: CABAC
SKU: 269698
$38.50 List price: $51.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint extended terminal cover (shroud) for 3P NM8N 400-630A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.

Alternatively Known As: Long Terminal Cover, Extended Terminal Shroud, MCCB Terminal Protection Cover, NM8N-TCE23-M8-3P

Technical Specifications
  • Accessory Type: Long or extended terminal cover
  • Compatible Series: CHINT NM8N moulded case circuit breaker
  • Compatible Frame: 400A and 630A
  • Number of Poles: 3P
  • Protection Degree: IP40
  • Front Access: Knock-out holes for lug cables and front wiring
  • Pack Quantity: 2 terminal covers
  • Application Voltage: Terminal covers required for voltages of 500V and above
  • Dimensions (H x L x W): 480.5mm x 157mm x 113mm
  • Weight: 0.45 kg
Key Features
  • Designed specifically for 3P CHINT NM8N 400-630A frame MCCBs
  • Insulates exposed line and load terminals
  • Helps prevent accidental contact with the main circuit
  • Helps reduce the risk of short circuits between phases
  • Extended design accommodates various lug cable and front-wiring arrangements
  • Knock-out front sections allow cable entry and termination access
  • Suitable for switchboard and low-voltage power distribution applications
Professional Installation Requirements
  • Installation should be performed by a licensed electrician or suitably qualified switchboard technician with the associated MCCB isolated and verified de-energised. Install in accordance with the MCCB manufacturer’s instructions and applicable wiring and switchboard requirements.
Applications
  • Low-voltage switchboards
  • Industrial power distribution boards
  • Commercial electrical distribution equipment
  • Terminal protection for CHINT NM8N 400A and 630A MCCBs
  • Front-connected MCCB installations using lug cables
Standards & Compliance
  • Applicable to installations using low-voltage circuit-breakers selected and verified to AS/NZS IEC 60947.2:2015
  • Switchboard installation and assembly requirements should be assessed against AS/NZS 61439 and AS/NZS 3000 where applicable
Environmental Benefits
  • Durable insulating construction can extend the service life of the protected MCCB terminals and reduce replacement waste
  • Helps protect switchboard components from accidental contact and damage during service
  • Plastic insulating components may be separated for appropriate recycling at end of service life, subject to local recycling facilities
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
