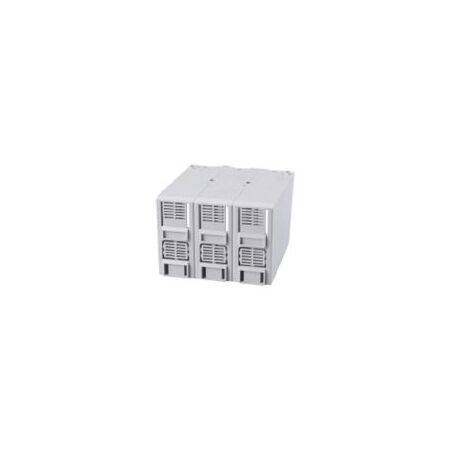

Extended Terminal Cover 3P to Suit NM8N 800A MCCB Chint

BRAND: CABAC
SKU: 269700
$44.00 List price: $58.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint extended terminal cover (shroud) for 3P NM8N 800A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.

Alternatively Known As: CHINT NM8N-800 3P Long Terminal Cover, MCCB Terminal Shroud, Extended Terminal Shield

Technical Specifications
  • Compatibility: CHINT NM8N 800A frame MCCB
  • Pole Configuration: 3-pole
  • Accessory Type: Extended or long terminal cover
  • Function: Insulates exposed line and load terminals and helps prevent phase-to-phase short circuits
  • Protection Degree: IP40 when fitted to the compatible MCCB
  • Material: Insulating moulded polymer
  • Mounting: Designed for direct fitment to the compatible CHINT NM8N-800 MCCB
  • Terminal Access: Front knock-out openings accommodate various cable lugs and connections
  • Dimensions (H x L x W): 516.6mm x 195mm x 131.5mm
  • Weight: 0.31 kg
Key Features
  • Designed specifically for CHINT NM8N 800A frame MCCBs
  • 3-pole configuration for three-phase installations
  • Extended shroud design provides increased coverage over line and load terminals
  • Helps prevent accidental contact with live main-circuit parts
  • Helps reduce the risk of short circuits between phases
  • Front knock-out openings support different lug and cable arrangements
  • Suitable for use in low-voltage switchboards and distribution assemblies
Professional Installation Requirements
  • Installation and any work on the associated MCCB or switchboard should be performed by a licensed electrician with the circuit isolated and verified de-energised. The completed switchboard assembly should be designed, constructed and verified in accordance with applicable Australian requirements.
Applications
  • Low-voltage switchboards
  • Main switchboards and distribution boards
  • Three-phase commercial electrical installations
  • Industrial power distribution assemblies
  • Terminal protection for CHINT NM8N 800A frame MCCBs
Standards & Compliance
  • Applicable to low-voltage switchboard assemblies designed and verified in accordance with AS/NZS 61439.1 and AS/NZS 61439.2
  • Installation work should comply with AS/NZS 3000:2018, including applicable amendments
Environmental Benefits
  • Extends the protective service life of the associated MCCB and switchboard assembly by reducing exposure of terminals to accidental contact and damage
  • Reusable accessory design can reduce replacement waste where the compatible MCCB remains in service
Warranty Information

CHINT general warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels; contract terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
