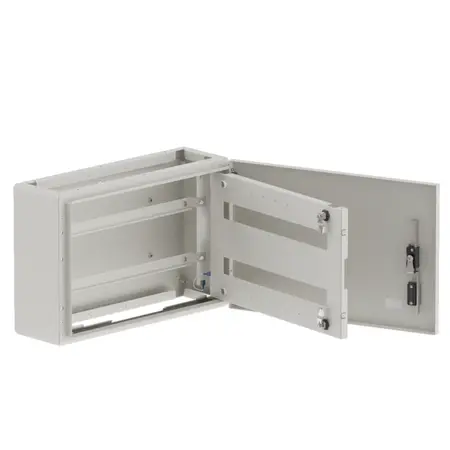

Extension Box 2x24 Pole DIN | 400x600x200mm | IP43 Rated | Grey by Hager

BRAND: :hager
SKU: JPA0EXTDW
$582.60 List price: $745.00
+
Extension box with 2x24 pole DIN capacity and IP43 rating—ideal for industrial and commercial electrical installations. Built for durability, with a robust steel construction and light grey finish.

Product Name/Title: Extension Box, apex, 2x24 Pole DIN, 400x600x200mm, grey

Brand: Hager

SKU: JPA0EXTDW

Alternatively Known As: DIN Rail Extension Box, Electrical Enclosure, Panelboard Enclosure

Technical Specifications
  • Nominal voltage: 415-415 V
  • Ingress Protection (IP) class: IP43
  • Impact resistance: IK05
  • Material: Steel
  • RAL code: 7035
  • Number of modules: 48
  • Number of rows: 2
  • Number of rails: 2
  • Dimensions (H x L x W): 400mm x 200mm x 600mm
  • Weight: 10 kg
Key Features
  • Constructed from durable steel with a light grey finish.
  • IP43 rated for protection against solid objects greater than 1mm and water spray.
  • Designed for surface mounting with a capacity of 48 modules.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for electrical installations in commercial and industrial settings.
  • General: Ideal for use in environments requiring robust electrical enclosures.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Extension Box - 2x24 Pole DIN is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

JPA0EXTDW (JPA0EXTDW, 103 Kb) [Download]

reach_declaration_JPA0EXTDW.pdf (reach_declaration_JPA0EXTDW.pdf, 103 Kb) [Download]

rohs_declaration_JPA0EXTDW.pdf (rohs_declaration_JPA0EXTDW.pdf, 104 Kb) [Download]

(6LE009744B_Performa_Apex_Apex-Plus_EN_02-2024_Leaflet_web.pdf, 16,805 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
