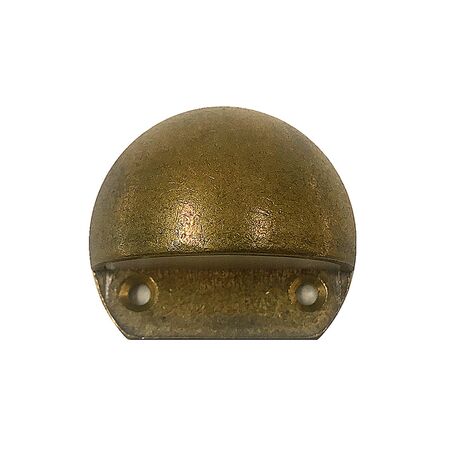

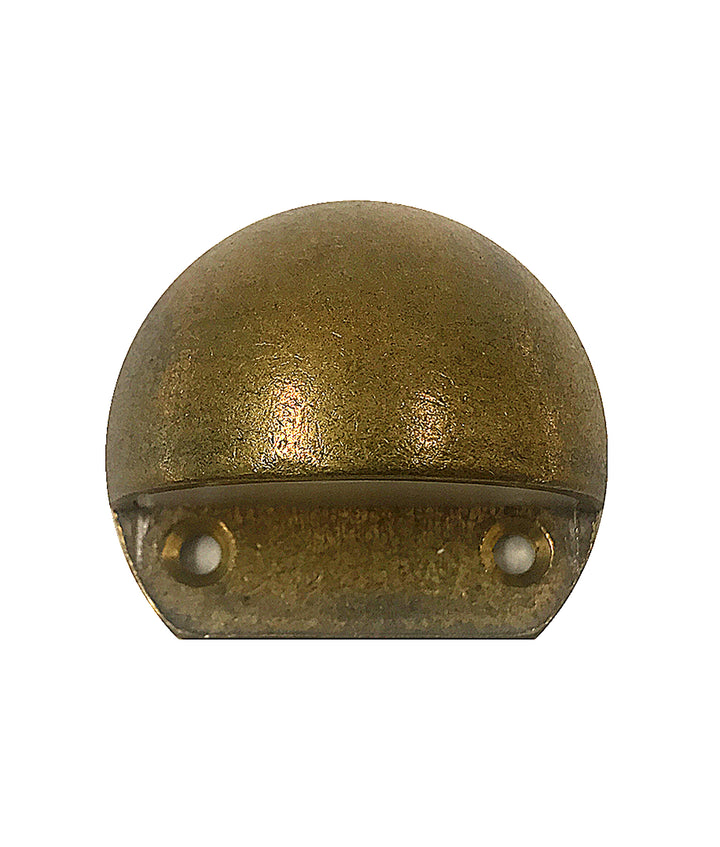

Exterior LED 12V Bronze/Brass Eyelid Step Wall Light | IP65 Rated | 107lm Output | 3000K Color Temperature | by CLA Lighting
Illuminate your outdoor spaces with the Exterior LED 12V Bronze/Brass Eyelid Step Wall Light, featuring a robust IP65 rating for weather resistance and a warm 3000K color temperature. With a powerful 107 lumens output and solid bronze or brass housing, this light is perfect for residential and commercial applications, ensuring safety on steps and pathways.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Exterior LED 12V Bronze/Brass Eyelid Step Wall Light | IP65 Rated | 107lm Output | 3000K Color Temperature | by CLA Lighting
Brand: CLA Lighting
SKU: STE9
Alternatively Known As: Exterior LED Step Light, Eyelid Step Light, 12V Outdoor Step Light, Bronze Step Light, Brass Eyelid Wall Light
Technical Specifications
- Power Wattage: 1W
- Input Voltage: 12V DC
- Lumens Output: 107lm
- Colour Temperature: 3000K
- Beam Angle: 120 degrees
- Power Factor: ≥0.95
- CRI: 80
- Material: Solid bronze or solid brass housing with frosted polycarbonate diffuser
- IP Rating: IP65
- Operating Temperature: -40 to 85ºC
- LED Chip: 1pc XP-E-Q5
- Not suitable for dimming

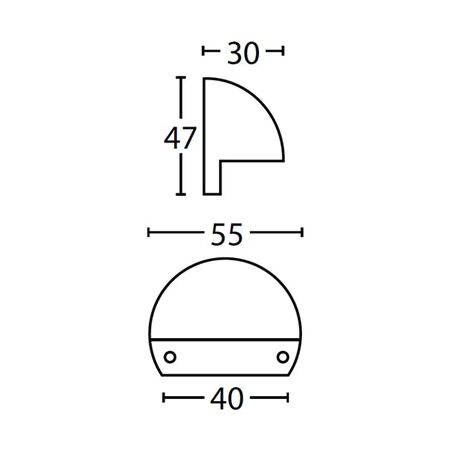

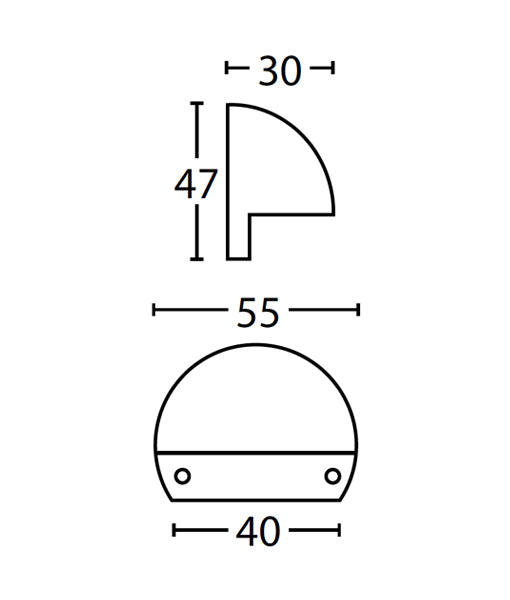

- Dimensions (H x L x W): 47mm x 55mm x 55mm
- Weight: 0.2 kg
Key Features
- Exterior LED surface mounted eyelid step lights
- Input voltage: 12V DC
- External 12V control gear required
- Recommended CLA drivers: OTTER series
- Housing made of solid bronze or solid brass
- Frosted polycarbonate diffuser
- Available in aged bronze, nickel plated, or aged brass finishes
- LED chip: 1pc XP-E-Q5
- Power factor ≥0.95
- Operating ambient temperature from -40 to 85ºC
- Not suitable for dimming
- IP65 rated for weather resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct 12V DC wiring and use of compatible external control gear.
Applications
- Exterior lighting for residential homes
- Outdoor step and pathway illumination
- Architectural and landscape lighting
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Low power consumption with 1W LED reduces energy use.
- Long LED lifespan minimizes waste and replacement frequency.
Warranty Information
2 year replacement warranty.
Available Now
The CLA Lighting STE Exterior LED 12V Bronze/Brass Eyelid Step Wall Light IP65 is available now for immediate purchase. Ideal for residential and commercial outdoor step and pathway lighting applications.
