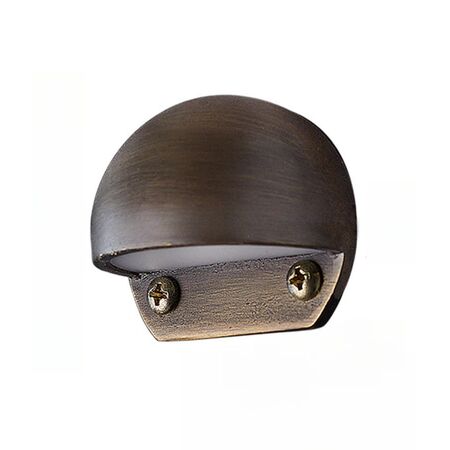

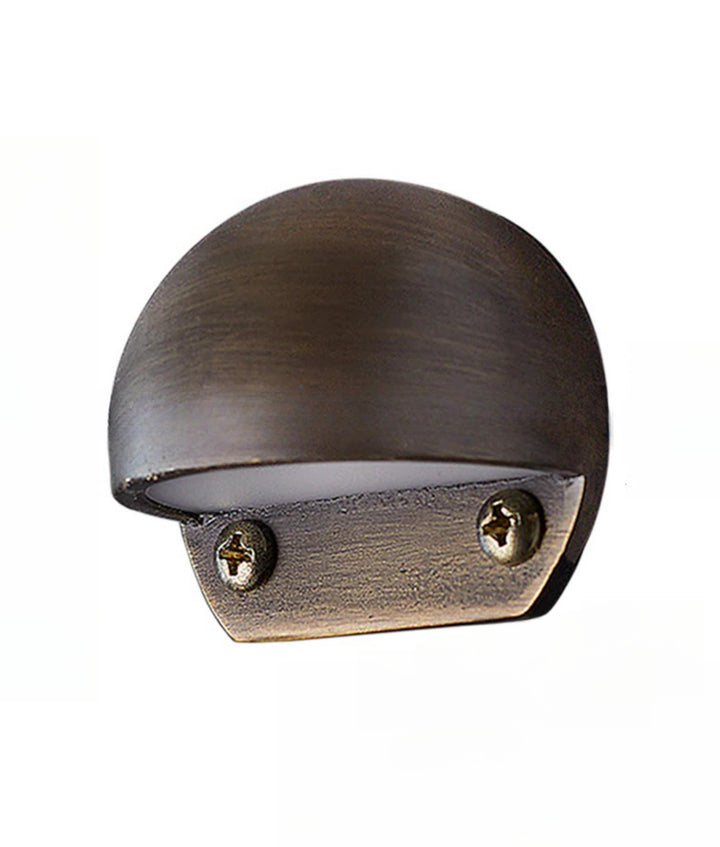

Exterior LED 12V Bronze/Brass Eyelid Step Wall Light | IP65 Rated | 3000K Color Temperature | 107 Lumens | by CLA Lighting
Illuminate your outdoor spaces with the Exterior LED 12V Bronze/Brass Eyelid Step Wall Light, featuring a warm 3000K color temperature and 107 lumens output. Designed for residential and commercial applications, this IP65 rated light ensures durability and water resistance, making it perfect for pathways and steps. With a solid brass or bronze housing, it combines functionality with aesthetic appeal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Exterior LED 12V Bronze/Brass Eyelid Step Wall Light | IP65 Rated | 3000K Color Temperature | 107 Lumens | by CLA Lighting
Brand: CLA Lighting
SKU: STE27
Alternatively Known As: Exterior LED Step Light, Eyelid Step Light, 12V Outdoor Step Light, Bronze Eyelid Wall Light, Brass Step Light
Technical Specifications
- Input Voltage: 12V DC
- Wattage: 1W
- Colour Temperature: 3000K
- Lumens Output: 107lm
- Beam Angle: 120 degrees
- Power Factor: ≥0.95
- CRI: 80
- Material: Solid brass or bronze housing
- Diffuser: Frosted polycarbonate
- Operating Temperature: -40 to 85ºC
- IP Rating: IP65
- LED Chip: 1pc XP-E-Q5
- Not suitable for dimming
- Dimensions (H x L x W): 47mm x 55mm x 55mm
- Weight: 0.46 kg
Key Features
- Exterior LED surface mounted eyelid step lights
- Input voltage: 12V DC
- External 12V Control Gear required
- Recommended CLA drivers: OTTER series
- Housing made from solid bronze or solid brass
- Frosted PC diffuser for soft light diffusion
- Available in aged bronze, nickel plated, or aged brass finishes
- Uses 1pc XP-E-Q5 LED chip
- Power factor ≥0.95
- Operates in ambient temperatures from -40 to 85ºC
- Not suitable for dimming
- IP65 rated for dust and water resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct 12V DC wiring and compliance with electrical standards.
Applications
- Exterior lighting for residential homes
- Outdoor step and pathway illumination
- Commercial exterior lighting applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 1W LED technology reduces energy use.
- Long LED lifespan minimizes waste and replacement frequency.
- Solid brass and bronze materials are durable and recyclable.
Warranty Information
2 year replacement warranty.
Available Now
The CLA Lighting STE Exterior LED 12V Bronze/Brass Eyelid Step Wall Light IP65 is available for immediate purchase, ideal for enhancing safety and aesthetics in outdoor residential and commercial environments.
