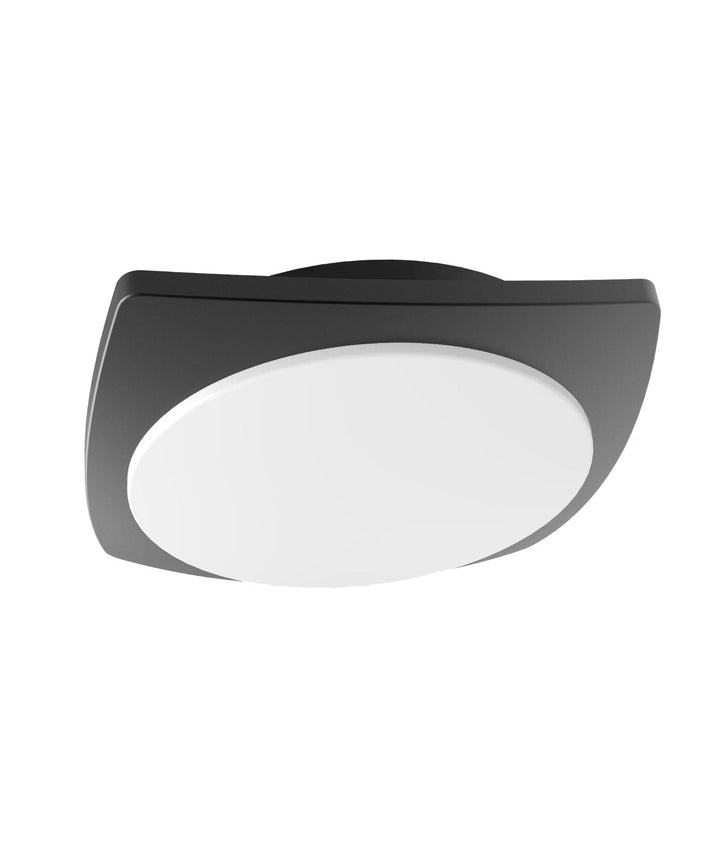

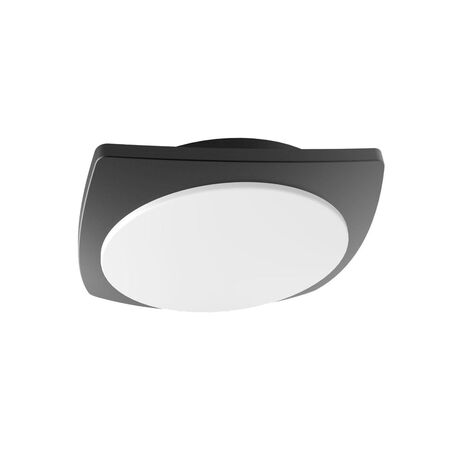

Exterior LED Square Wall Ceiling Lights | 20W Power | 980 Lumens Output | IP65 Rated | by CLA Lighting

BRAND: CLA Lighting
SKU: ULAN1
$140.90 List price: $170.50
+ −
30 Days Return Delivery Options
Illuminate your outdoor spaces with the Exterior LED Square Wall Ceiling Lights, featuring a powerful 20W consumption and 980 lumens output. Designed for both residential and commercial applications, these lights are IP65 rated for dust and water resistance, ensuring durability in various weather conditions. With a sleek powder-coated aluminum housing and polycarbonate diffuser, they provide efficient lighting while enhancing the aesthetic of your exterior.

Product Name/Title: Exterior LED Square Wall Ceiling Lights | 20W Power | 980 Lumens Output | IP65 Rated | by CLA Lighting

Brand: CLA Lighting

SKU: ULAN1

Alternatively Known As: Exterior LED Wall Light, Outdoor LED Ceiling Light, IP65 LED Wall Light, Square LED Exterior Light

Technical Specifications
  • Input Voltage: 220-240V AC 50/60Hz
  • Wattage: 20W
  • Lumens: 980lm
  • Colour Temperature: 3000K
  • Beam Angle: 105.8 degrees
  • Power Factor: >0.9
  • Input Current: 0.095A
  • Output Voltage Range: 225-245V
  • Output Current: 0.095A
  • Inrush Current: 1.5A
  • LED Chip: 25pcs 2835
  • Ambient Temperature Range: -20 to 50°C
  • Suitable for 2-way switching and use with PIR or Microwave sensors
  • Housing Material: Powder coated aluminium
  • Diffuser Material: Polycarbonate
  • Bracket Material: Polycarbonate
  • IP Rating: IP65
  • CRI: 80
  • Dimensions (H x L x W): 55mm x 251mm x 251mm
  • Weight: 1.35 kg
Key Features
  • 20W power consumption with 980 lumens output
  • IP65 rated for dust and water resistance
  • Powder coated aluminium housing with polycarbonate diffuser and bracket
  • Onboard inbuilt driver with input voltage range 220-240V AC 50/60Hz
  • Power factor greater than 0.9
  • Suitable for 2-way switching
  • Ambient operating temperature from -20 to 50°C
  • LED chip: 25pcs 2835
  • Beam angle of 105.8 degrees
  • CRI of 80
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Exterior lighting for residential homes
  • Outdoor wall and ceiling lighting
  • Suitable for use with PIR or microwave sensors
  • Commercial outdoor lighting applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
  • Long lifespan reduces waste and replacement frequency.
  • IP65 rating ensures durability and reduces environmental damage.
Warranty Information

3 year replacement warranty.

Available Now

The CLA Lighting ULAN Exterior LED Square Wall Ceiling Light IP65 20W 3000K is available for immediate purchase, ideal for residential and commercial exterior lighting applications.
