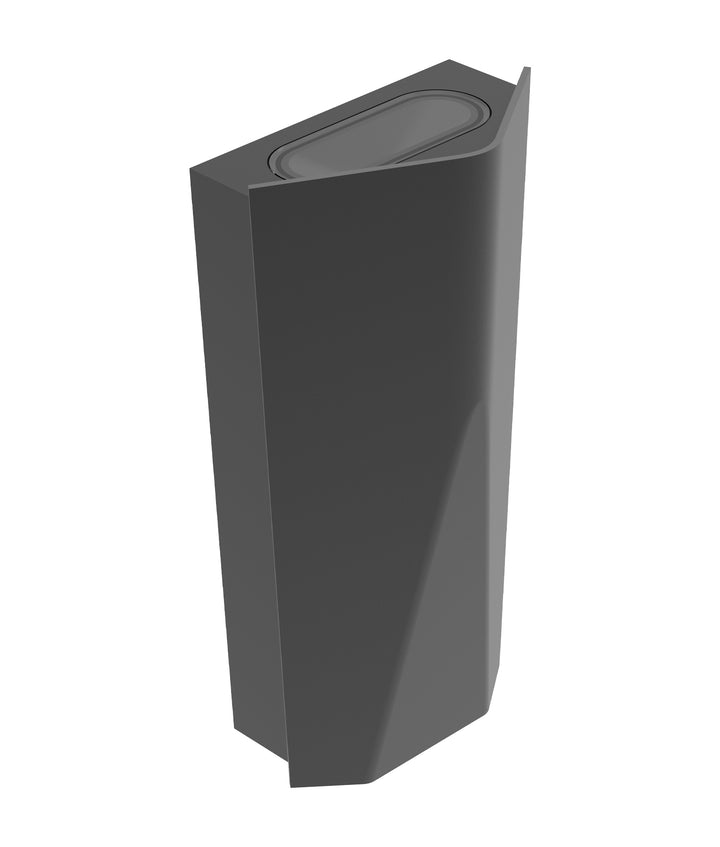

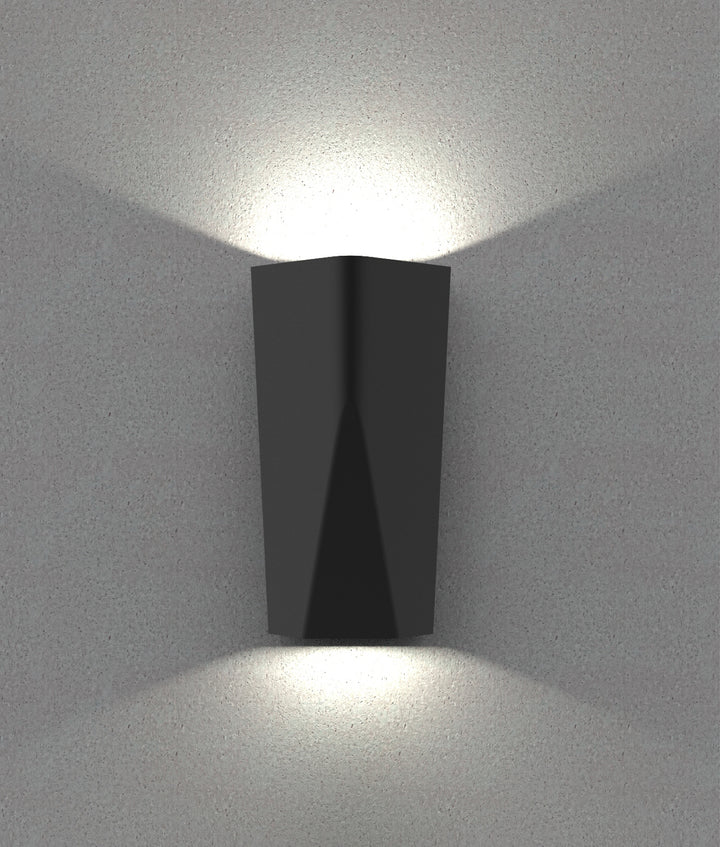

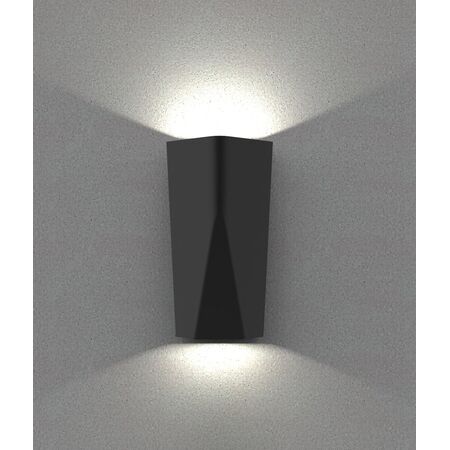

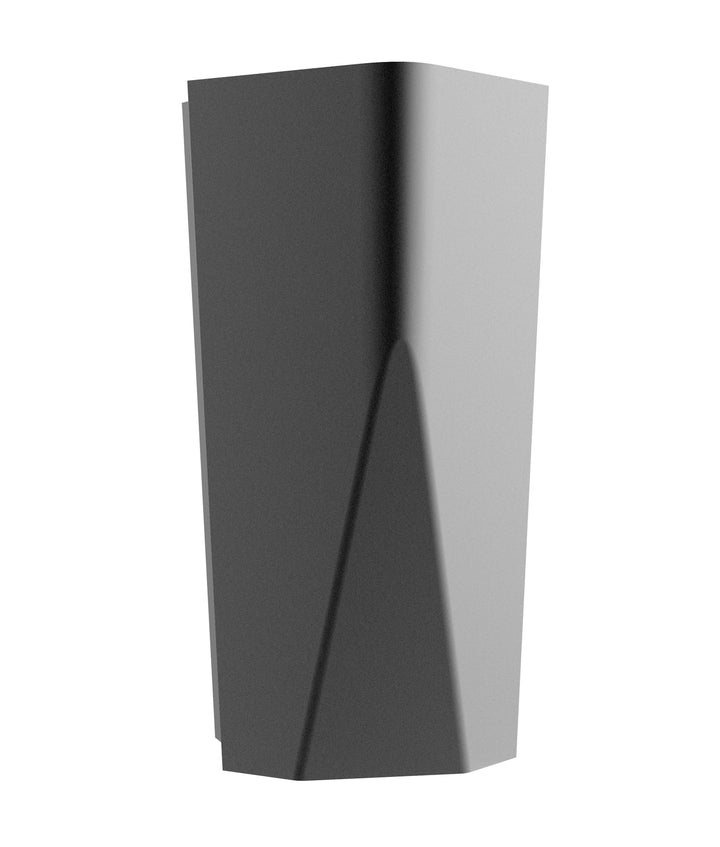

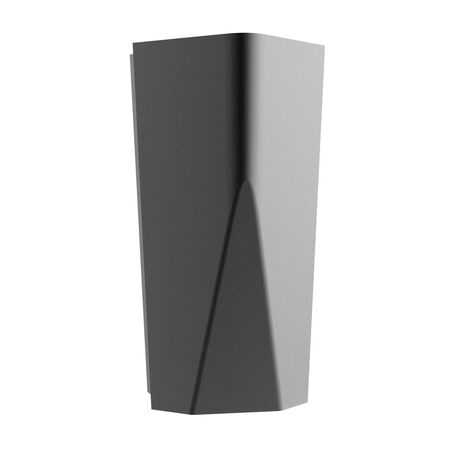

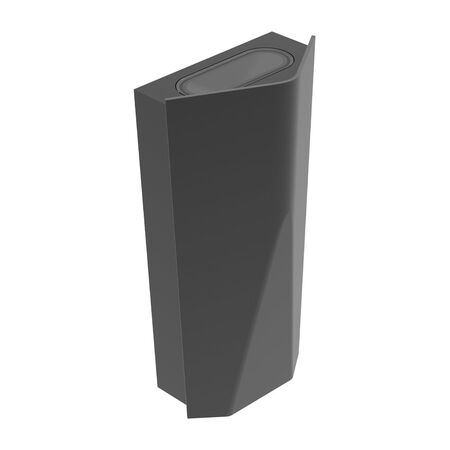

Exterior LED Tri-CCT Surface Mounted Up/Down Wall Light | IP65 Rated | 11W Power | 3 Color Temperatures | by CLA Lighting

BRAND: CLA Lighting
SKU: WIGTRI1
$135.00 List price: $163.40
+ −
30 Days Return Delivery Options
The Exterior LED Tri-CCT Surface Mounted Up/Down Wall Light is perfect for enhancing outdoor spaces with its tri-color temperature options of 3000K, 4000K, and 6500K. Designed for durability with an IP65 rating, this 11W light is ideal for residential and commercial applications, providing efficient illumination for pathways, gardens, and building facades.

Product Name/Title: Exterior LED Tri-CCT Surface Mounted Up/Down Wall Light | IP65 Rated | 11W Power | 3 Color Temperatures | by CLA Lighting

Brand: CLA Lighting

SKU: WIGTRI1

Alternatively Known As: Exterior LED Wall Light, Tri-CCT Outdoor Wall Light, Surface Mounted LED Wall Light, Up Down Wall Light IP65

Technical Specifications
  • Power: 11W
  • Input Voltage: 100-240V AC 50/60Hz
  • Lumens Output: 297lm (3000K), 351lm (4000K), 294lm (6500K)
  • Beam Angle: 67.6°, 63.6°, or 65.1° with stickers
  • Power Factor: 0.9
  • CRI: >80
  • LED Chip: 8pcs 3030
  • Ambient Temperature Range: -20 to 40°C
  • Back Plate Size: 17mm x 9mm
  • IP Rating: IP65
  • Dimensions (H x L x W): 200mm x 62mm x 106mm
  • Weight: 0.8 kg
Key Features
  • Exterior surface mounted up/down LED wall light
  • Tri-CCT selectable color temperature: 3000K, 4000K, 6500K
  • Input voltage range: 100-240V AC 50/60Hz
  • Housing made of powder coated aluminium for durability
  • Clear acrylic diffuser for optimal light distribution
  • 8pcs 3030 LED chips with high CRI >80
  • Power factor of 0.9 for efficient energy use
  • Includes 2 stickers to narrow beam angle as needed
  • Beam angle options: 67.6°, 63.6°, or 65.1°
  • IP65 rated for protection against dust and water jets
  • Suitable for 2-way switching
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure correct wiring and compliance with electrical safety standards.
Applications
  • Exterior lighting for residential homes
  • Outdoor commercial building facades
  • Pathway and garden wall illumination
  • Suitable for use with PIR or microwave sensors
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
  • Long lifespan reduces waste and replacement frequency.
  • Tri-CCT feature allows customized lighting to reduce unnecessary energy use.
Warranty Information

3 year replacement warranty.

Available Now

The CLA Lighting WIGTRI Exterior LED Tri-CCT Surface Mounted Up/Down Wall Light IP65 is available now for immediate purchase. Ideal for residential and commercial exterior lighting applications.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
