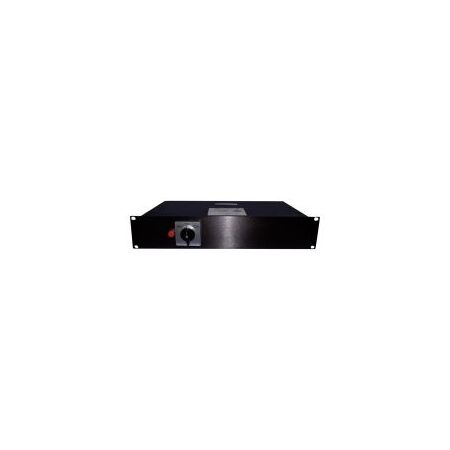

External Manual Bypass Switch Rack Mount 1Ph 25A PSS

BRAND: CABAC
SKU: EMBP25-1-R
$2,165.80 List price: $2,887.70
+ −
30 Days Return Electricians Unlock Trade Access
PSS external manual bypass switch features 25A 1 phase, make-before-break 3 position switching and E and N bars. Ideal for Enduro 6kVA and GP 4-6kVA UPS.

Alternatively Known As: External Maintenance Bypass Switch, Manual UPS Bypass, Wrap-Around UPS Bypass, Maintenance Bypass Panel

Technical Specifications
  • Model: EMBP25-1-R
  • Current Rating: 25 A
  • Phase: Single phase
  • Mounting: 19-inch rack mount, 2RU
  • Switching: Make-before-break
  • Switch Positions: Normal, Bypass, Bypass & Isolate
  • Connections: Terminal strips
  • Earthing: Earth bar included
  • Neutral: Neutral bar included
  • UPS Compatibility: PSS Enduro 6kVA and GP 804/806
  • Construction: Built in Australia
  • Dimensions (H x L x W): 89mm x 254mm x 430mm
  • Weight: 5 kg
Key Features
  • Provides external UPS maintenance bypass and isolation
  • Make-before-break switching supports transfer without interrupting the connected load when correctly installed and operated
  • Three-position Normal, Bypass and Bypass & Isolate control
  • Mechanical interlock helps prevent accidental backfeed between sources
  • Includes earth and neutral bars
  • Rack-mount format occupies 2RU
  • Synchronisation cable connection supports alignment between UPS and mains supplies
Professional Installation Requirements
  • Must be installed, wired and commissioned by a licensed electrician or suitably qualified UPS technician in accordance with PSS instructions and applicable Australian electrical requirements. Correct switching procedures must be followed before UPS isolation or maintenance.
Applications
  • External maintenance bypass for PSS Enduro 6kVA UPS systems
  • External maintenance bypass for PSS GP 804 and GP 806 UPS systems
  • Data centres and server rooms
  • Telecommunications and network infrastructure
  • Industrial and other critical-power installations requiring UPS service continuity
Standards & Compliance
  • AS/NZS 3000:2018 – Electrical installations, applicable to hardwired installation, earthing, isolation and associated wiring
Environmental Benefits
  • Supports UPS servicing and replacement without unnecessary interruption or premature disposal of the UPS system
  • May extend the useful service life of connected UPS equipment by enabling safer routine maintenance
  • Metallic switchgear and enclosure materials may be recyclable at end of life, subject to local recycling facilities
Warranty Information

PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to PSS terms, correct installation and operation.

Available Now

Available through PSS and authorised Australian distributors; confirm current stock and lead time before ordering.
