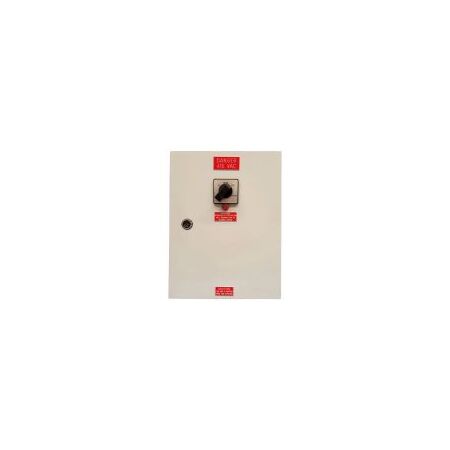

External Manual Bypass Switch Wall Mount 1Ph 10A PSS
PSS external manual bypass switch features 10A single phase rating and wall mount design. Ideal for isolating a UPS for maintenance without dropping the load.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: UPS Maintenance Bypass Switch, External UPS Bypass Panel, Manual UPS Bypass Switch, PSS EMBP10-1-W
Technical Specifications
- Model: EMBP10-1-W
- Rated Current: 10 A
- Phase: Single phase
- Mounting: Wall mount
- Application: External UPS maintenance bypass
- Auxiliary Output: No
- Switching Function: Manual bypass and UPS isolation
- Input/Output: Hardwired terminal connections; verify installation details before use
- Dimensions (H x L x W): 400mm x 300mm x 150mm
- Weight: 4 kg
Key Features
- Maintains supply to the connected load while the UPS is isolated for servicing
- Suitable for single-phase UPS applications up to 10 A
- Wall-mounted enclosure for fixed installations
- Manual bypass operation for maintenance and service access
- Designed for use in critical power, communications and equipment protection systems
- PSS product range is listed as Australian Standard compliant
Professional Installation Requirements
- Installation and commissioning must be performed by a licensed electrician in accordance with the manufacturer’s instructions and AS/NZS 3000. The bypass sequence, isolation, earthing, neutral arrangements and UPS compatibility must be verified before energisation.
Applications
- UPS maintenance and servicing
- Small single-phase critical power systems
- Telecommunications and network equipment
- Security, control and automation systems
- Computer, server and communications installations
Standards & Compliance
- AS/NZS 3000: Electrical installations – Wiring Rules, for fixed electrical installation and commissioning
- AS/NZS 3947.3: Low-voltage switchgear and controlgear – switches, disconnectors and switch-disconnectors, where applicable to the switchgear assembly
Environmental Benefits
- Allows UPS equipment to be isolated for maintenance without replacing the complete power system, supporting longer service life
- Supports reduced downtime and premature disposal of connected UPS equipment
- Metal enclosure and electrical components may be recyclable at end of service life, subject to local recycling facilities
Warranty Information
PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to the published PSS warranty terms. Hardwired products may require commissioning by an approved PSS technician or contractor to maintain warranty validity.
Available Now
Available through PSS Distributors and authorised Australian distributors; confirm current stock and lead time before ordering.
