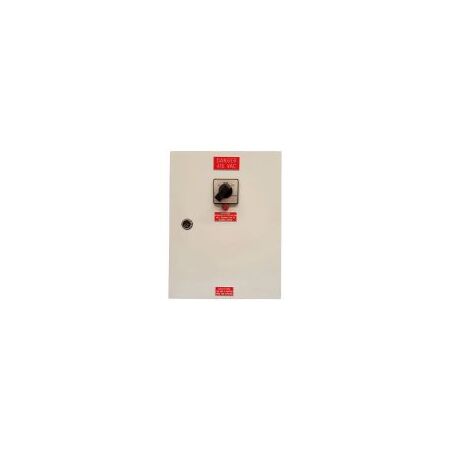

External Manual Bypass Switch Wall Mount 1Ph 25A PSS

BRAND: CABAC
SKU: EMBP25-1-W
$1,585.30 List price: $2,113.70
+ −
30 Days Return Electricians Unlock Trade Access
PSS external manual bypass switch features 25A 1 phase, make-before-break 3 position switching and E and N bars. Ideal for Enduro 6kVA and GP 4-6kVA UPS.

Alternatively Known As: External Manual Interlocking Bypass, UPS Maintenance Bypass Switch, Single-Phase UPS Bypass Panel

Technical Specifications
  • Model: EMBP25-1-W
  • Rated Current: 25A
  • Phase: Single-phase
  • Switching: Make-before-break
  • Switch Positions: Normal, Bypass, Bypass and Isolate
  • Connections: Wired to terminal strips
  • Earthing and Neutral: Integrated earth and neutral bars
  • UPS Compatibility: Enduro 6kVA and GP 804/806 UPS systems
  • Construction: Wall-mounted external manual interlocking bypass
  • Country of Manufacture: Australia
  • Dimensions (H x L x W): 150mm x 170mm x 220mm
  • Weight: 2.5 kg
Key Features
  • Provides manual UPS bypass and isolation for maintenance and servicing
  • Make-before-break switching supports uninterrupted load transfer between UPS and mains supply
  • Three-position operation: Normal, Bypass, and Bypass & Isolate
  • Mechanical interlock helps prevent incorrect switching and backfeed
  • Integrated earth and neutral bars
  • Terminal-strip wiring simplifies connection and maintenance
  • Suitable for Enduro 6kVA and GP 4-6kVA UPS applications
Professional Installation Requirements
  • Installation and commissioning must be completed by a licensed electrician or suitably qualified UPS technician. The hardwired bypass switch should be installed, tested and labelled in accordance with PSS instructions, AS/NZS 3000 and applicable local electrical requirements.
Applications
  • UPS maintenance bypass installations
  • Enduro 6kVA UPS systems
  • GP 804/806 and GP 4-6kVA UPS systems
  • Data centres and communications rooms
  • Industrial, commercial and other critical-load power installations
Standards & Compliance
  • AS/NZS 3000:2018 – Electrical installations and wiring requirements
  • AS/NZS IEC 60947.6.1:2015 – Transfer switching equipment, where applicable to the assembled switchgear
Environmental Benefits
  • Supports UPS servicing and repair without replacing the complete power-protection system, helping extend equipment service life
  • Mechanical manual switching does not require continuous control power while operating in a selected position
  • Longer equipment service life can reduce replacement frequency and associated electrical waste
Warranty Information

PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to correct installation, commissioning, use and the manufacturer's warranty conditions.

Available Now

Available through PSS and authorised Australian electrical and UPS distributors; confirm current stock and lead time with the distributor.
