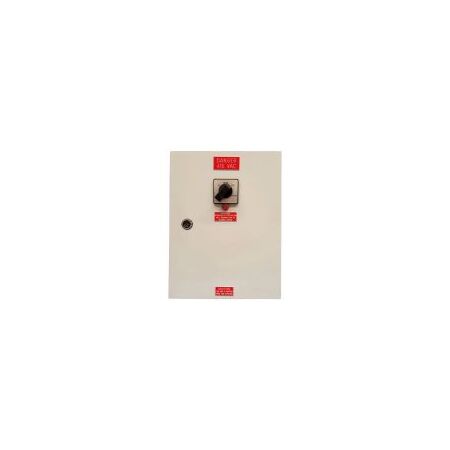

External Manual Bypass Switch Wall Mount 1Ph 40A PSS

BRAND: CABAC
SKU: EMBP40-1-W
$1,790.90 List price: $2,387.80
+ −
30 Days Return Electricians Unlock Trade Access
PSS external manual bypass switch features 40A 1 phase, make-before-break 3 position switching and E and N bars. Ideal for Enduro 10kVA and GP 10kVA UPS.

Alternatively Known As: UPS Maintenance Bypass Switch, External Manual Interlocking Bypass, UPS Service Bypass Switch

Technical Specifications
  • Model: EMBP40-1-W
  • Current Rating: 40 A
  • Phase Configuration: 1-phase / 1-phase
  • Switching Type: Make-before-break
  • Switch Positions: Normal, Bypass, Bypass and Isolate
  • Connections: Terminal strips
  • Earthing: Earth bar included
  • Neutral: Neutral bar included
  • Mounting: Wall mount
  • UPS Compatibility: Enduro 10 kVA and GP 808/810
  • Construction: Built in Australia
  • Dimensions (H x L x W): 150mm x 170mm x 220mm
  • Weight: 3 kg
Key Features
  • Provides manual bypass operation for UPS maintenance and servicing
  • Make-before-break switching supports uninterrupted load transfer when correctly installed and operated
  • Three-position control for normal operation, bypass operation and bypass with isolation
  • Mechanical interlocking helps prevent incorrect switching and backfeed
  • Terminal-strip wiring simplifies installation and service access
  • Includes dedicated earth and neutral bars
  • Designed for single-phase Enduro 10 kVA and GP 808/810 UPS systems
Professional Installation Requirements
  • Must be installed, wired, tested and commissioned by a licensed electrician or suitably qualified UPS technician. Installation should follow the manufacturer’s instructions, AS/NZS 3000 and applicable UPS system requirements. Confirm UPS synchronisation and isolation procedures before switching.
Applications
  • External maintenance bypass for single-phase UPS systems
  • UPS servicing, replacement and hot-swapping without unnecessary load interruption
  • Critical power installations in data centres, healthcare, industrial and commercial facilities
  • Power continuity and UPS compliance upgrade projects
Standards & Compliance
  • AS/NZS 3000: Electrical installations and fixed wiring requirements
Environmental Benefits
  • Supports longer UPS service life by allowing maintenance and replacement without unnecessary system replacement
  • Metallic switchgear, earth bars and terminal components can generally be recovered through appropriate electrical equipment recycling streams
  • Durable, serviceable construction may reduce replacement frequency and associated waste
Warranty Information

PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to PSS terms and correct installation. Hardwired products may require commissioning by an approved PSS technician or contractor.

Available Now

Available through PSS Distributors and authorised Australian distributors; contact the supplier to confirm current availability and lead time.
