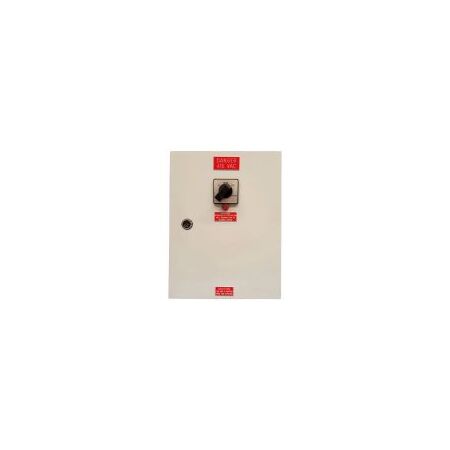

External Manual Bypass Switch Wall Mount 3Ph 32A PSS

BRAND: CABAC
SKU: EMBP32-3-W
$2,476.60 List price: $3,302.20
+ −
30 Days Return Electricians Unlock Trade Access
PSS external manual bypass switch features 32A 3 phase, make-before-break 3 position switching and E and N bars. Ideal for PMU-20 and EP20 UPS.

Alternatively Known As: External UPS Maintenance Bypass Switch, Manual Interlocking Bypass, 3-Phase UPS Bypass Panel

Technical Specifications
  • Model: EMBP32-3-W
  • Rated Current: 32 A
  • Configuration: Three-phase wall mount
  • Switching: Make-before-break
  • Switch Positions: Normal, Bypass, Bypass & Isolate
  • Interlocking: Mechanical interlock
  • Connections: Terminal strips
  • Included Bars: Earth and neutral bars
  • UPS Compatibility: PSS PMU-20 and EP20
  • Manufacture: Built in Australia
  • Dimensions: 150 x 220 x 170 mm (H x W x D)
  • Dimensions (H x L x W): 150mm x 170mm x 220mm
  • Weight: 3.2 kg
Key Features
  • Provides external manual bypass and isolation for compatible UPS systems
  • Make-before-break switching supports transfer between mains and UPS without interrupting the connected load when correctly synchronised
  • Three operating positions: Normal, Bypass, and Bypass & Isolate
  • Mechanical interlock helps prevent incorrect source selection and backfeed
  • Terminal-strip wiring simplifies hardwired installation and servicing
  • Includes dedicated earth and neutral bars
  • Wall-mounted enclosure suitable for UPS maintenance and service applications
Professional Installation Requirements
  • Must be installed and commissioned by a licensed electrical contractor in accordance with PSS instructions and AS/NZS 3000. This is a hardwired mains-voltage device; isolation, source synchronisation, phase sequence and neutral/earth arrangements must be verified before energisation. PSS warranty terms state that hardwired products must be commissioned by an approved and authorised PSS technician or contractor. ([pssdistributors.com.au](https://www.pssdistributors.com.au/ups-warranty/))
Applications
  • External maintenance bypass for PSS PMU-20 UPS systems
  • External maintenance bypass for PSS EP20 UPS systems
  • UPS servicing, replacement and isolation without planned interruption to critical loads
  • Power continuity installations in data centres, healthcare, industrial and commercial facilities
Standards & Compliance
  • Installation should comply with AS/NZS 3000:2018 Electrical installations, commonly known as the Wiring Rules. ([standards.org.au](https://www.standards.org.au/flagship-projects/wiring-rules?utm_source=openai))
  • The switching equipment category is associated with AS/NZS IEC 60947.3 for switches, disconnectors and switch-disconnectors; confirm the product-specific declaration of conformity with PSS. ([files.conorbriggs.com.au](https://files.conorbriggs.com.au/AS_NZS%203000_2018%20Wiring%20Rules%20--%20Standards%20Association%20Of%20Australia_%20Joint%20Technical%20--%206%2C%202018%20--%20SAI%20Global%20Pty%20Limited%20under%20licence%20from%20Standards.pdf?utm_source=openai))
  • PSS describes the external bypass range as built to Australian Standards; no model-specific certificate or declaration was located during research. ([mssdatasolutions.com.au](https://www.mssdatasolutions.com.au/p/power-supplies-batteries/uninterruptible-power-supplies/external-bypass/embp32-3-w))
Environmental Benefits
  • Allows compatible UPS equipment to be serviced or replaced without replacing the complete bypass arrangement, potentially extending system life and reducing equipment waste
  • Serviceable hardwired construction can support long-term maintenance and reduce replacement frequency
  • The metal electrical enclosure and conductors may be recyclable at end of service life, subject to material separation and local recycling facilities
Warranty Information

PSS Distributors provides a standard 2-year return-to-base warranty from the original purchase date, subject to proof of purchase, correct installation, authorised commissioning for hardwired products and the stated warranty exclusions. ([pssdistributors.com.au](https://www.pssdistributors.com.au/ups-warranty/))

Available Now

Available through PSS and authorised Australian distributors; distributor listings indicate quotation or availability confirmation may be required. ([mssdatasolutions.com.au](https://www.mssdatasolutions.com.au/p/power-supplies-batteries/uninterruptible-power-supplies/external-bypass/embp32-3-w))
