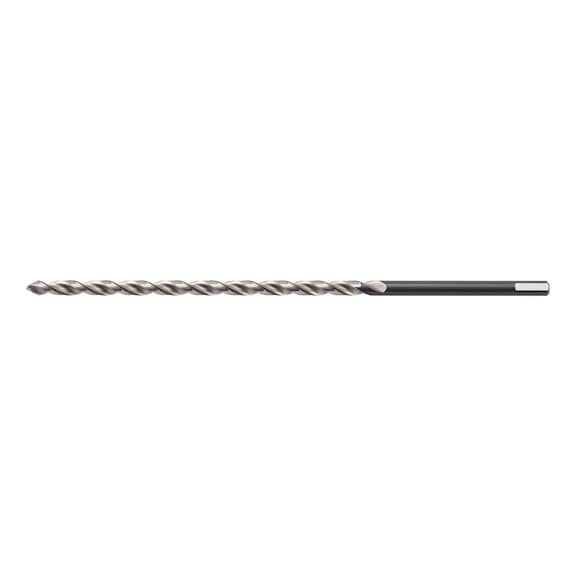

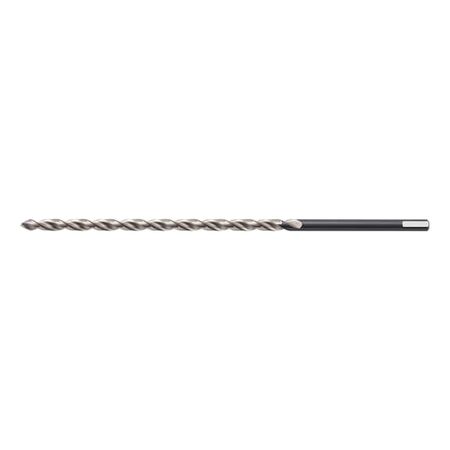

Extra-Long Twist Drill Bit | 5.0 mm Diameter | High-Speed Steel | Self-Centring Design | by Wurth
The Extra-Long Twist Drill Bit is designed for high-precision drilling in soft and hardwood, composite materials, and metals up to 1000 N/mm². With a unique stepped drill bit tip geometry, it eliminates the need for pre-drilling and ensures precise spot drilling. Ideal for skilled users, this drill bit offers exceptional performance with significantly less effort, making it perfect for handheld and pillar drills.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extra-Long Twist Drill Bit | 5.0 mm Diameter | High-Speed Steel | Self-Centring Design | by Wurth
Brand: Wurth
SKU: 624950500
Alternatively Known As: Extra-Long Twist Drill Bit, Deep Hole Drill, SMART STEP Drill Bit, High-Precision Drill Bit
Technical Specifications
- Diameter: 5.0 mm
- Length: 245 mm
- Chip flute length: 170 mm
- Drill tip length: 3.9 mm
- Shank diameter: 5.0 mm
- Shank style: 3-face shank
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Suitable for tensile strength up to 1000 N/mm²
- Self-centring design
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 1869 / 25xD
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill, cordless drills, and upright drilling machines
- Dimensions (H x L x W): 5mm x 245mm x 5mm
- Weight: 0.1 kg
Key Features
- First extra-long twist drill bit with stepped drill bit tip geometry
- Eliminates pre-drilling despite extra-long design for precise spot drilling
- Prevents tool from running off-centre during deep drilling
- Up to 100% faster than conventional extra-long HSS drill bits
- 3-flat shank for no spinning in drill chuck and optimal power transmission
- Extremely comfortable drilling with significantly less effort
- Product packaging made from 100% PCR recycled plastic and fully recyclable
- Suitable for drilling thin-walled composite materials like plastic profiles with steel core
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by skilled users.
Applications
- High-precision circular drilling in soft and hardwood
- Drilling in composite materials, steel up to 1000 N/mm²
- Suitable for cast iron, aluminium, plastic, copper, brass, and bronze
- Ideal for handheld and pillar drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is 100% recyclable, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Extra-Long Deep Hole Drill with SMART STEP Technology is available for immediate purchase, ideal for precision drilling in woodworking, metalworking, and composite materials.
