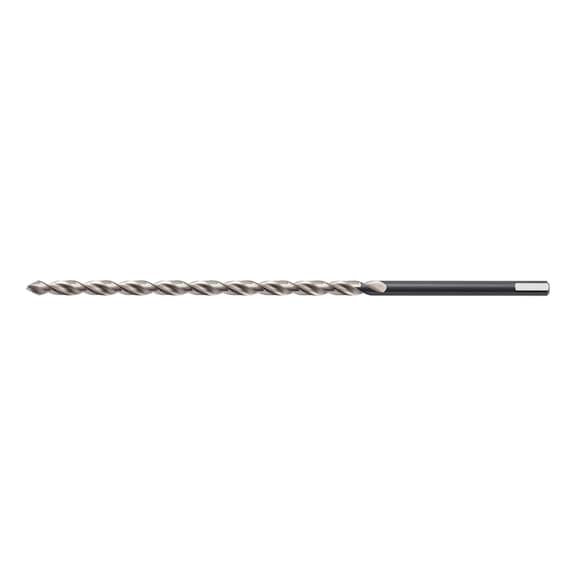

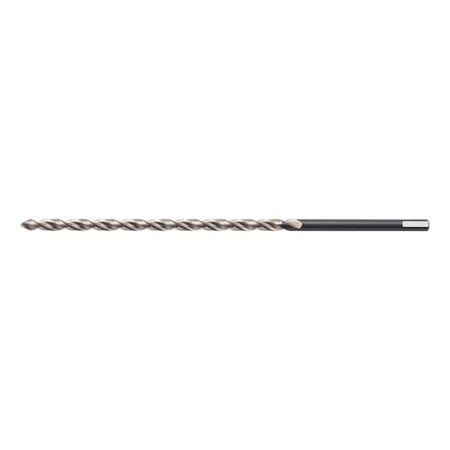

Extra-Long Twist Drill Bit | High-Precision SMART STEP Design | 4.9 mm Diameter | by Wurth
The Extra-Long Twist Drill Bit is engineered for high-precision drilling in various materials, including steel, hardwood, and plastics. Featuring a unique SMART STEP design, this drill bit eliminates the need for pre-drilling and ensures up to 100% faster drilling compared to conventional bits. Ideal for professionals and DIY enthusiasts alike, it offers exceptional performance with less effort, making it perfect for deep hole applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extra-Long Twist Drill Bit | High-Precision SMART STEP Design | 4.9 mm Diameter | by Wurth
Brand: Wurth
SKU: 624950490
Alternatively Known As: Extra-Long Twist Drill Bit, Deep Hole Drill, SMART STEP Drill Bit, High-Precision Drill Bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Non-ferrous metal, Wood, Hardwood
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 1869 / 25xD
- Design: Overlong
- Diameter: 4.9 mm
- Length: 245 mm
- Chip flute length: 170 mm
- Drill tip length: 3.8 mm
- Shank diameter: 4.9 mm
- Shank style: 3-face shank
- Surface: Multiple refined
- Cutting material: HSS
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1000 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Magnesium alloys, Copper, Brass, Bronze, Plastics including reinforced types
- Dimensions (H x L x W): 4.9mm x 245mm x 4.9mm
- Weight: 0.15 kg
Key Features
- First extra-long twist drill bit with stepped drill bit tip geometry eliminating the need for pre-drilling
- Prevents tool from running off-centre during deep drilling
- Up to 100% faster than conventional extra-long HSS drill bits
- Extremely comfortable drilling with significantly less effort
- 3-flat shank design for no spinning in the drill chuck and optimal power transmission
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- High quality drill holes and significantly longer service life compared to conventional wood boring bits
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless drills by trained operators.
Applications
- High-precision circular drilling in soft and hardwood
- Drilling in composite materials, steel up to 1000 N/mm², cast iron, aluminium, plastic, copper, brass, and bronze
- Suitable for cordless drill drivers, handheld drills, pedestal drilling machines, and drill presses
- Ideal for drilling thin-walled composite materials such as plastic profiles with steel core in window construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth extra-long deep hole drill with SMART STEP technology is available for immediate purchase. Ideal for precision drilling in a wide range of materials in machining and construction applications.
