Extreme Temperature Conduit | Galvanized Steel Core | High Flexibility | IP69K Rated by Cabac

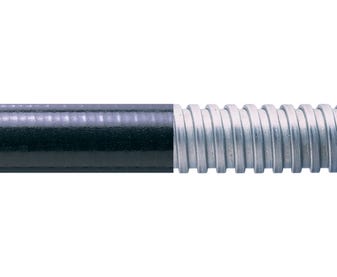

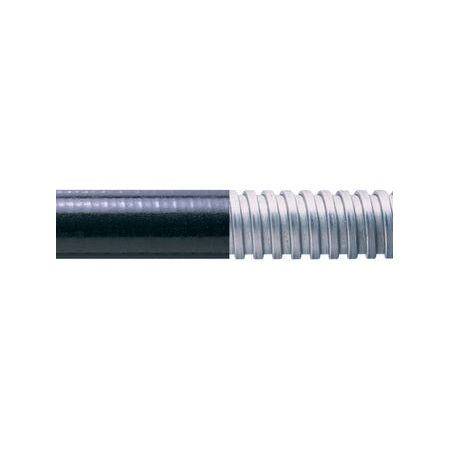

The Cabac CONDUIT SPLHC Extreme Temperature Galvanised Steel TPR NC16X25M is a highly flexible conduit with a galvanized steel core and thermoplastic rubber jacket, designed for extreme temperature and harsh environments including offshore and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPLHC EXTREME TEMPERATURE GALVANISED STEEL TPR NC16X25M
Brand: Cabac
SKU: SPLHC16/25M
Alternatively Known As: Extreme Temperature Conduit, Galvanised Steel Flexible Conduit, High Temperature TPR Conduit, SPLHC Conduit
Technical Specifications
- Core Material: Galvanized steel (string packed)
- Jacket Material: High temperature thermoplastic rubber (TPR)
- Temperature Range: Static -65ºC to +135ºC, Dynamic -45ºC to +150ºC
- IP Rating: 10 Bar for 30 minutes, IP69K
- Flexibility: Maintains flexibility at sub-zero temperatures
- UV Resistance: Very high
- Mechanical Strength: Good
- Dimensions (H x L x W): 25mm x 25000mm x 25mm
- Weight: 2.5 kg
Key Features
- Galvanized steel core with string packing for durability
- High temperature thermoplastic rubber (TPR) jacket
- Highly flexible even at sub-zero temperatures
- Temperature range: Static Applications -65ºC to +135ºC, Dynamic Applications -45ºC to +150ºC
- Chemically resistant
- High IP rating: 10 Bar for 30 minutes, rated to IP69K
- Very high UV resistance
- Good mechanical strength
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Offshore environments
- Oil & Gas industry
- Utility – Power and Energy sectors
- Industry Processing applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- High chemical and UV resistance extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT SPLHC Extreme Temperature Galvanised Steel TPR NC16X25M is available for immediate purchase, ideal for harsh environment cable protection in offshore, oil & gas, and industrial applications.
