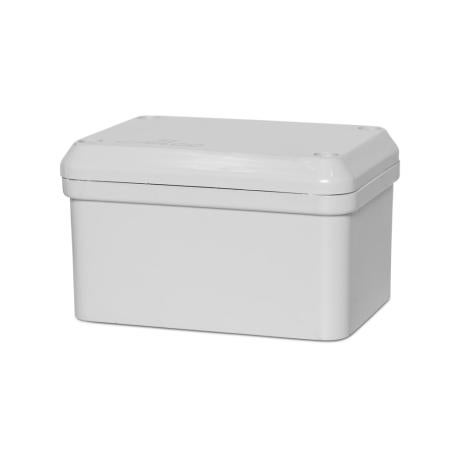

Ezibox Junction Box Weatherproof IP56 PVC Enclosure | High Impact Resistance | Gasketed Lid | by Wattmaster
The Ezibox Junction Box is a weatherproof IP56 PVC enclosure designed for reliable electrical junction and control applications. With high impact resistance and a gasketed lid for enhanced sealing, it's perfect for both indoor and outdoor use in harsh environments. This durable enclosure ensures protection against dust and water, making it ideal for residential, commercial, and industrial wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ezibox Junction Box Weatherproof IP56 PVC Enclosure | High Impact Resistance | Gasketed Lid | by Wattmaster
Brand: Wattmaster
SKU: ALCEZIBOX2
Alternatively Known As: Weatherproof Junction Box, IP56 PVC Enclosure, Electrical Junction Box, Control Enclosure
Technical Specifications
- Material: PVC
- Ingress Protection: IP56 (dust protected and water resistant)
- Dimensions: 120mm x 85mm x 72mm
- High impact resistance
- Gasketed lid for sealing
- Compliant with AS/NZS 60529
- Corrosion free
- Threaded entries for conduit and cable entry
- Dimensions (H x L x W): 72mm x 85mm x 120mm
- Weight: 0.3 kg
Key Features
- Professional wide-ranging solution for junction boxes and control enclosures
- Gasketed lid for enhanced sealing
- IP56 rated for dust and water resistance when installed correctly
- High impact resistance and fully insulated
- Sealed cover to prevent ingress of contaminants
- Knockouts for conduit and cable entry
- Corrosion free PVC construction
- Threaded entries compatible with ALCEZIBOX0 & ALCEZIX1
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct sealing and compliance with IP56 rating.
Applications
- Electrical junction box for residential, commercial, and industrial wiring
- Control enclosure for protecting electrical connections
- Suitable for outdoor and indoor use where weatherproof protection is required
Standards & Compliance
- Complies with AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Corrosion-free PVC material extends product life reducing waste
- Weatherproof design minimizes need for frequent replacements
- Fully insulated enclosure enhances electrical safety and reduces risk of faults
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Ezibox Junction Box Weatherproof IP56 PVC Enclosure 120x85x72mm Grey is available for immediate purchase, ideal for electrical junction and control enclosure applications in harsh environments.
