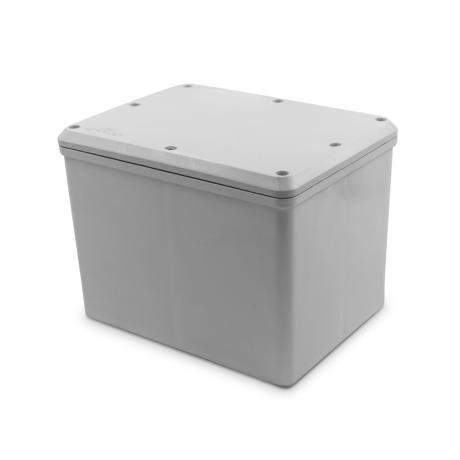

Ezibox Junction Box Weatherproof IP56 PVC Enclosure | High Impact Resistance | Sealed Cover | by Wattmaster
The Ezibox Junction Box is a weatherproof IP56-rated PVC enclosure designed for reliable protection of electrical connections in various applications. With high impact resistance and a fully insulated design, it ensures safety and durability for both indoor and outdoor use. Ideal for residential, commercial, and industrial wiring, this junction box features knockouts for easy conduit and cable entry, making installation straightforward and efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ezibox Junction Box Weatherproof IP56 PVC Enclosure | High Impact Resistance | Sealed Cover | by Wattmaster
Brand: Wattmaster
SKU: ALCEZIBOX7
Alternatively Known As: Weatherproof Junction Box, PVC Electrical Enclosure, IP56 Junction Box, Outdoor Electrical Box
Technical Specifications
- Material: PVC
- Ingress Protection: IP56 (dust protected and water resistant)
- Dimensions: 230mm (W) x 175mm (L) x 160mm (H)
- High impact resistance
- Fully insulated enclosure
- Sealed cover with knockouts for conduit and cable entry
- Compliant with AS/NZS 60529 for ingress protection
- Dimensions (H x L x W): 160mm x 175mm x 230mm
- Weight: 1.2 kg
Key Features
- Weatherproof with IP56 rating for dust and water resistance
- High impact resistance and fully insulated for safety
- Sealed cover to protect internal components
- Knockouts for conduit and cable entry
- Corrosion free PVC construction
- Threaded entries compatible with ALCEZIBOX0 & ALCEZIX1
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct sealing and compliance with IP56 rating.
Applications
- Electrical junction box for residential, commercial, and industrial wiring
- Control enclosure for protecting electrical components
- Suitable for outdoor and indoor use requiring dust and water resistance
Standards & Compliance
- Complies with AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Corrosion-free PVC material extends product life reducing waste
- Weatherproof design minimizes need for frequent replacements
- Fully insulated enclosure enhances electrical safety and reduces risk of faults
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Ezibox Weatherproof IP56 PVC Junction Box is available for immediate purchase, ideal for protecting electrical connections in residential, commercial, and industrial applications.
