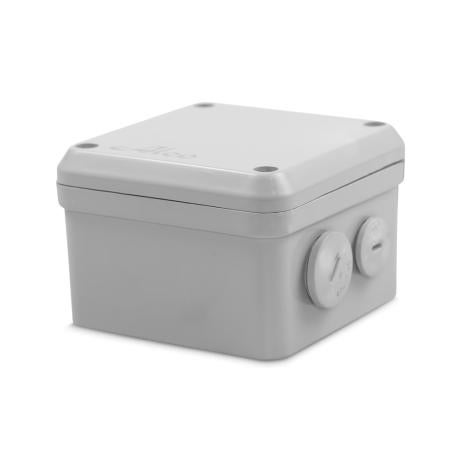

Ezibox Junction Box Weatherproof IP66 PVC Enclosure | 2 x 20mm & 2 x 25mm Entries | Silicone Seal & Stainless Steel Screws | by Wattmaster
The Ezibox Junction Box is a weatherproof IP66-rated PVC enclosure designed for reliable electrical junctions and control gear applications. Featuring 2 x 20mm and 2 x 25mm entries, a silicone-sealed lid, and captive stainless steel screws, it ensures durability and protection against dust and water. Ideal for both indoor and outdoor installations, this junction box is perfect for residential, commercial, and industrial wiring needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ezibox Junction Box Weatherproof IP66 PVC Enclosure | 2 x 20mm & 2 x 25mm Entries | Silicone Seal & Stainless Steel Screws | by Wattmaster
Brand: Wattmaster
SKU: ALCEZIBOX1X
Alternatively Known As: Weatherproof Junction Box, PVC Electrical Enclosure, IP66 Junction Box, Control Gear Enclosure
Technical Specifications
- Material: UV stabilised PVC
- Ingress Protection: IP66 (dust tight and protected against powerful water jets)
- Entries: 2 x 20mm and 2 x 25mm screwed adaptors included
- Seal: Silicone seal on lid
- Screws: Captive stainless steel screws
- Mounting: Internal mounting rails and DIN rail compatible
- Lid retention: Lanyard fitted to prevent lid dropping
- Dimensions (H x L x W): 72mm x 105mm x 105mm
- Weight: 0.3 kg
Key Features
- IP66 rated for dust and water resistance when installed correctly
- Includes 2 x 20mm and 2 x 25mm screwed adaptors for conduit entries
- Lanyard fitted between lid and body to prevent lid dropping during installation
- Internal mounting rails for control gear and DIN rail mounting
- Lid with silicone seal and captive stainless steel screws
- Made from fully insulated, high impact resistance, UV stabilised PVC material
- Threaded entries with stops and knock-outs for conduit and cable entry
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct sealing and compliance with IP66 rating.
Applications
- Electrical junction box for residential, commercial, and industrial wiring
- Control enclosures for electrical and electronic equipment
- Outdoor and indoor installations requiring dust and water resistance
Standards & Compliance
- Complies with AS/NZS 60529 for Ingress Protection (IP) ratings
Environmental Benefits
- UV stabilised PVC material extends product life reducing waste
- Durable weatherproof design minimizes need for replacements
- Supports safe and secure electrical installations reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Ezibox Weatherproof IP56 PVC Junction Box 105x105x72mm is available for immediate purchase, ideal for electrical junction and control enclosure applications in various environments.
