F Female to KS Port Adaptor | Metal Body | Gold-Plated Contacts | Compact Design by Matchmaster
F female to KS port adaptor with metal body and gold-plated contacts—ideal for telecommunications. Built for reliable connections, with a compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 'F' Female to KS Port Adaptor
Brand: Matchmaster
SKU: 18MM-KSFA
Alternatively Known As: 'F' type to KS 5/8" adaptor, CATV port adaptor, 75 Ohm KS to F connector
Technical Specifications
- Material: 6262 aluminium
- Impedance: 75 Ohm
- Return Loss: >16dB at 1GHz
- Frequency Range: DC-1GHz
- Connector Type: 'F' female to KS 5/8" male
- Approvals: Foxtel (F30163), Telstra (739/112)
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features

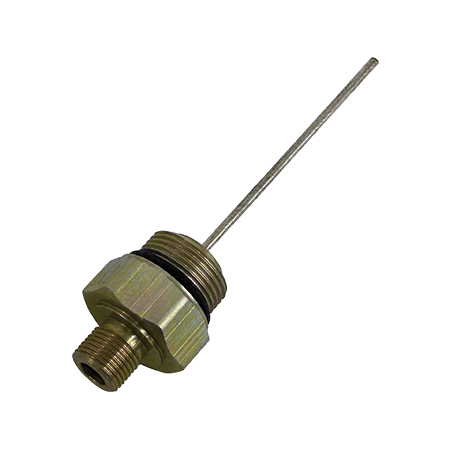

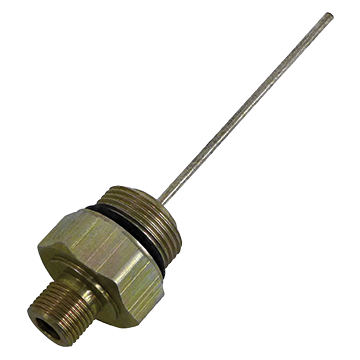

- 5/8" KS interface to 'F' type series female adaptor
- Made from durable 6262 aluminium
- Long stinger design, trim-to-length at installation
- O-ring for watertight connection
- Greater than 16dB return loss at 1GHz
- Operating frequency range DC-1GHz
- 75 Ohm impedance
- Foxtel (F30163) and Telstra (739/112) approved
Professional Installation Requirements
- Professional installation recommended to ensure proper trimming of stinger and watertight connection.
Applications
- CATV amplifier housings
- Tap and splitter housings
- Outdoor CATV connections requiring 'F' type to KS 5/8" adaptation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminium construction reduces need for frequent replacements
- Watertight design prevents environmental damage and signal loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms.
Available Now
The Matchmaster 'F' Female to KS Port Adaptor is available now for immediate purchase. Ideal for CATV amplifier and outdoor tap/splitter installations.
