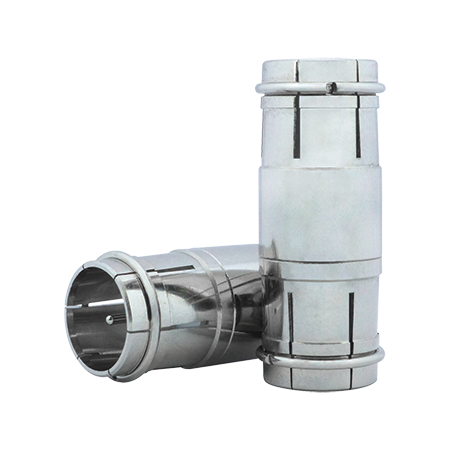

F Push-on to F Push-on Adaptor | 5-3000MHz | Gold Plated | 75 Ohm by Matchmaster
F push-on to F push-on adaptor with 5-3000MHz frequency range and gold plating—ideal for home entertainment and telecommunications. Built for secure connections, with durable construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 'F' Push-on to 'F' Push-on 5-3000MHz Adaptor
Brand: Matchmaster
SKU: 18MM-QC01
Alternatively Known As: F type push on adaptor, F quick connect adaptor, RF push on connector, F connector adaptor
Technical Specifications
- Frequency range: 5-3000MHz
- Return loss: >20dB @ 3000MHz
- Material: Nickel-plated brass
- Connector type: ‘F’ push on to ‘F’ push on
- Dimensions (H x L x W): 18mm x 18mm x 18mm
- Weight: 0.02 kg
Key Features
- ‘F’ type quick connect push on connector
- Nickel-plated brass body for long-life corrosion resistance
- Easy, quick connection of multiswitch and tap systems
- Return loss >20dB @ 3000MHz
- Foxtel approved (F30926)
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper connection and signal integrity.
Applications
- Linking multiswitches
- Adapting RF test leads
- Outlet or antenna testing without screwing onto F-type female RF ports
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 'F' Push-on to 'F' Push-on 5-3000MHz Adaptor is available now for immediate purchase. Ideal for professional RF and antenna testing applications.
