F-Type Splitter 2 Way | 5-2450MHz | Power Pass All Ports
F-Type splitter with 5-2450MHz frequency range and power pass on all ports—ideal for satellite and terrestrial setups. Built for reliable signal distribution, with Foxtel approval and 10dB extra screening for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

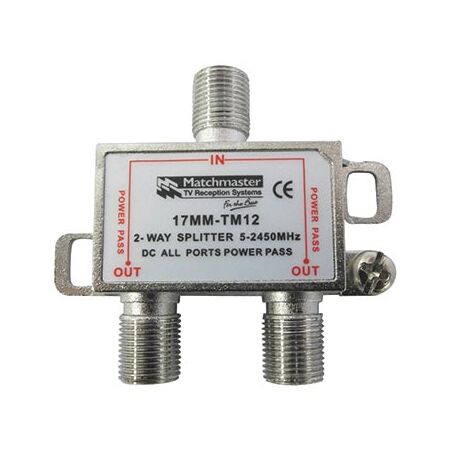

Product Name/Title: F-Type Splitter 2 Way | 5-2450MHz | Power Pass All Ports
SKU: 17MM-TM12
Alternatively Known As: RF splitter, Satellite splitter, TV signal splitter, 2 way coaxial splitter
Technical Specifications
- Frequency Range: 5-2450 MHz
- Insertion Loss: 3.9-5 dB
- Isolation/Outputs: 25 dB
- Screening: 55 dB
- Power Pass: All ports AC/DC
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Power pass on all ports for DC and AC signals
- Foxtel approved (G93)
- 10dB extra screening with soldered back
- Suitable for both Satellite and Terrestrial frequencies
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with Foxtel standards.
Applications
- Satellite TV distribution
- Terrestrial TV signal splitting
- Foxtel approved installations
- Residential and commercial RF signal distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster F-Type 2 Way Splitter is available now for immediate purchase. Ideal for satellite and terrestrial TV signal distribution in residential and commercial settings.
