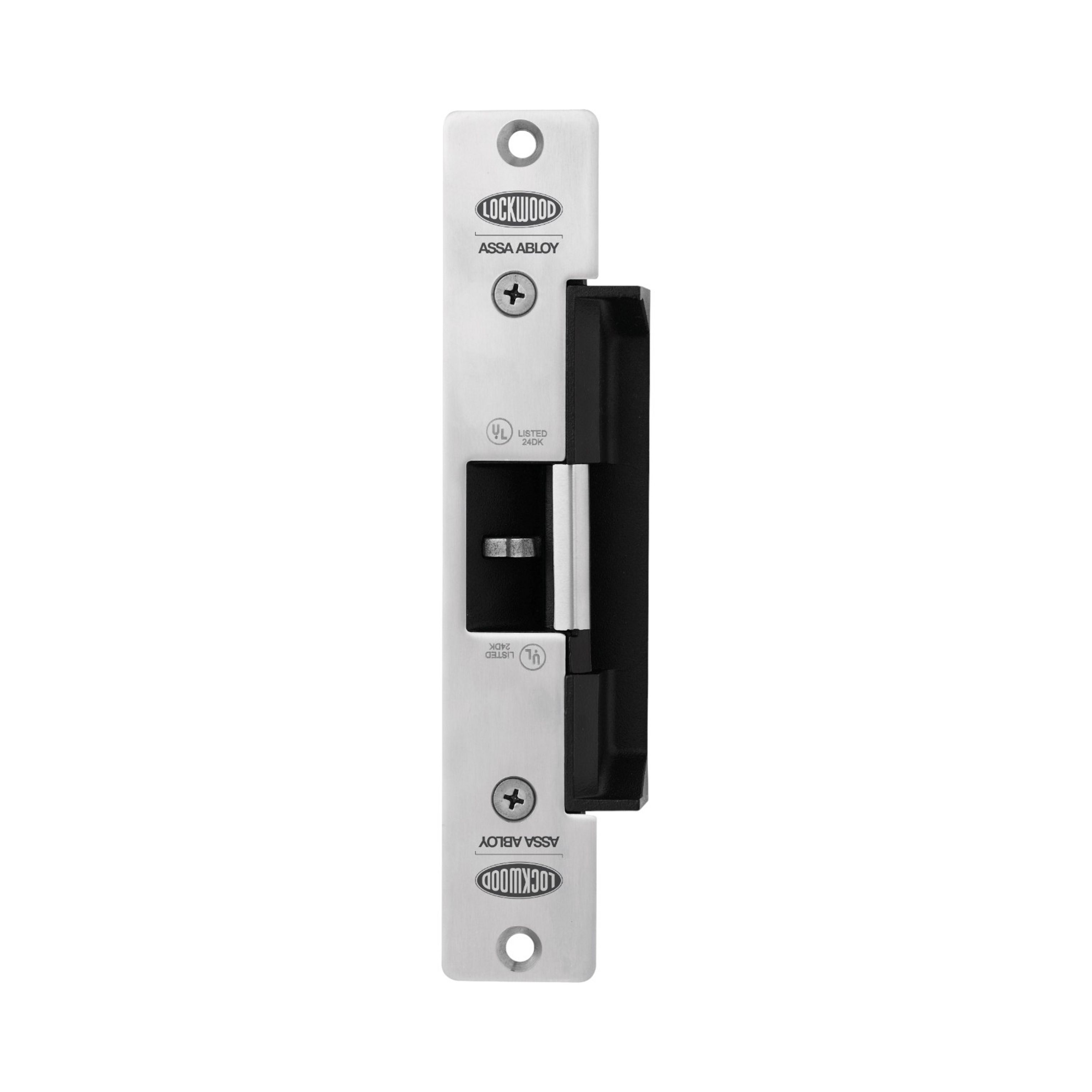

Fail Safe Monitored Electric Strike | 12VDC | 850kg Holding Force | Stainless Steel Construction | by Lockwood
The Fail Safe Monitored Electric Strike operates at 12VDC and features a robust 850kg holding force, making it ideal for high-security access control systems. Constructed from solid stainless steel, this electric strike is designed for durability and long-term use, cycle tested to 1,000,000 operations. Perfect for commercial and industrial door security, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 12 or 24Vdc
- Current: 175mA @ 12Vdc
- Monitoring: Solenoid Monitor - 1 amp NO/NC microswitch; Door / Latch - 1 amp NO/NC microswitch
- Holding Force: 850kg static strength rating
- Endurance: Cycle tested to 1,000,000 operations
- Operational Temperature Range: -20ºC to +60ºC
- Body: Solid stainless steel construction
- Keeper: Stainless Steel Latch suitable for 18mm latchbolt with 3mm door gap
- Solenoid: Rated for continuous use
- Dimensions (H x L x W): 40mm x 25mm x 120mm
- Weight: 1.2 kg
Key Features
- Constructed from solid stainless steel for durability
- Fail safe and fail secure operation configurable on site
- Monitored with independent door, latch, and solenoid microswitches
- Cycle tested to 1,000,000 operations for long endurance
- Strong holding force of 850kg static strength rating
- Suitable for 18mm latchbolt with 3mm door gap
- Solenoids rated for continuous use at 175mA @ 12Vdc
Professional Installation Requirements
- Professional installation by a qualified locksmith or security system technician is recommended to ensure proper configuration and monitoring setup.
Applications
- High security access control systems
- Commercial and industrial door security
- Fail safe and fail secure door locking mechanisms
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption with solenoids rated for continuous use
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Lockwood ES3200-1 12VDC Fail Safe Monitored Electric Strike is available now for immediate purchase. Ideal for high security commercial and industrial access control applications.
