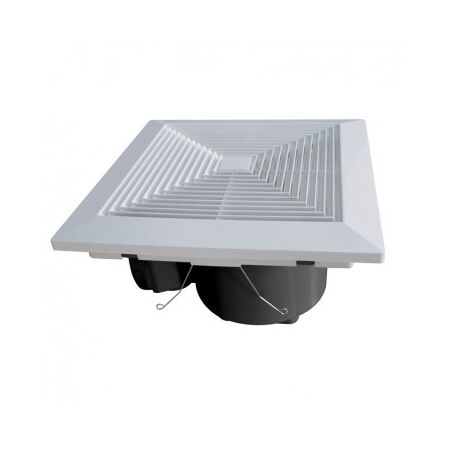

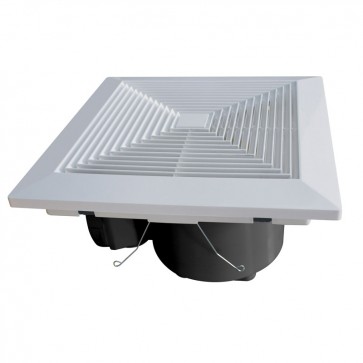

Fan Header Box with 150mm Side Duct Outlet | 400 m³/h Extract Capacity | IPX2 Rated | by Airware
The Fan Header Box with 150mm Side Duct Outlet is designed for efficient air extraction in bathrooms, kitchens, and other spaces. With a powerful 400 m³/h extract capacity and IPX2 environmental protection, it ensures effective ventilation while blending seamlessly into your décor. Ideal for both residential and commercial applications, this fan features a stylish white fascia and a sealed ball bearing motor for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fan Header Box with 150mm Side Duct Outlet | 400 m³/h Extract Capacity | IPX2 Rated | by Repelec
Brand: Repelec
SKU: AIRAW150
Alternatively Known As: Bathroom Exhaust Fan, Kitchen Exhaust Fan, Inline Fan with Side Duct
Technical Specifications
- Voltage: 220-240VAC
- Motor Power: 35W
- Extract Capacity: 400 m³/h
- Maximum Operating Temperature: 50°C
- Noise Level: 40 dBA at 3 meters
- Environmental Protection: IPX2
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 2.5 kg
Key Features
- Stylish white fascia designed to blend into any décor
- Fan construction using flame retardant ABS & PP
- Sealed ball bearing motor and backdraft damper
- Horizontal duct outlet for easy installation where ceiling space is limited (minimum 195mm)
- 1.0m lead and plug included
Professional Installation Requirements
- Professional installation by a qualified electrician or HVAC technician is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Extraction of air from bathrooms, kitchens, ensuites, toilets, laundries, and apartments
Standards & Compliance
- Complies with AS/NZS 60335.2.8:2016 & AS/NZS 60335.1:2011 (Electrical & Electronics)
Environmental Benefits
- Energy-efficient motor reduces power consumption
- Improves indoor air quality by effective ventilation
Warranty Information
Standard manufacturer warranty applies. Please refer to Repelec warranty terms for details.
Available Now
The Repelec Fan Header Box with 150mm Side Duct Outlet AIRAW150 is available now for immediate purchase. Ideal for residential and commercial ventilation applications.
