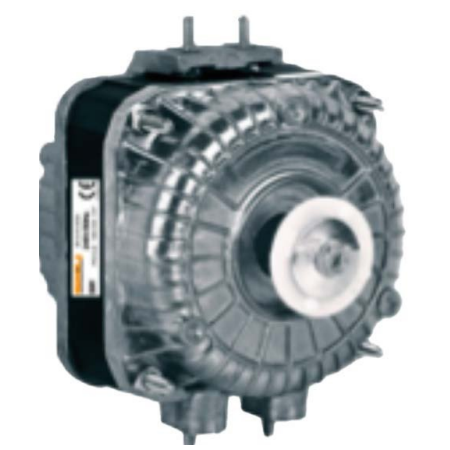

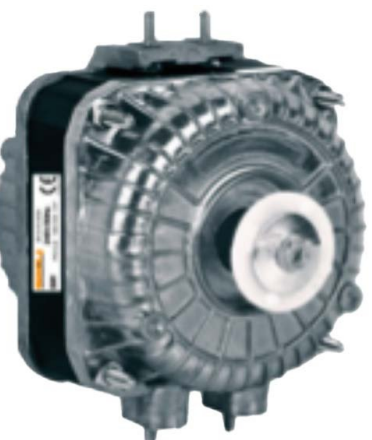

Fan Motor 10W | 230V Single Phase | IP42 Rated | 20,000 Hours Life | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 501-10-20-18/26
$27.30 List price: $33.10
+ −
30 Days Return Delivery Options
The Fan Motor 10W is designed for HVAC and ventilation systems, featuring a robust 230V single phase operation and an IP42 rating for protection against dust and water. With a thermally protected design and a lifespan of 20,000 hours, this motor is perfect for reliable performance in cooling equipment and general-purpose applications.

Product Name/Title: Fan Motor 10W | 230V Single Phase | IP42 Rated | 20,000 Hours Life | by Aspen Pumps

Brand: Aspen Pumps

SKU: 501-10-20-18/26

Alternatively Known As: 10W Shaded Pole Fan Motor, Single Phase Fan Motor 10W, 501 Series Fan Motor

Technical Specifications
  • Power Output: 10W
  • Voltage: 230V, 50Hz
  • Current: 0.25 Amps
  • Speed: 1300 RPM
  • Input Power: 36W
  • Supply Poles: 10
  • IP Rating: IP42
  • Insulation Class: B
  • Thermally protected (for 10W and above)
  • Impedance protected (for 5W models)
  • Mounting: 14 point multi mount frame
  • Operating Life: 20,000 hours
  • Dimensions (H x L x W): 52mm x 88mm x 37mm
  • Weight: 0.5 kg
Key Features
  • 10W power output
  • 230V/50Hz single phase operation
  • Shaded pole motor design with 4 shaded poles
  • 14 point multi mount frame for versatile installation
  • IP42 rated with insulation class B
  • Thermally protected for 10W and above
  • Impedance protected for 5W models
  • Supplied with mounting fasteners and 1m power cord
  • Rated for 20,000 hours of operation
  • CE, VDE, UL, CCC approvals and RoHS compliant
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper motor operation.
Applications
  • HVAC systems
  • Ventilation fans
  • Cooling equipment
  • General purpose fan motor applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Meets ErP performance standards for energy efficiency
  • RoHS compliant, reducing hazardous substances
Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Aspen Pumps Fan Motor 10W is available for immediate purchase, ideal for HVAC and ventilation system applications.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
