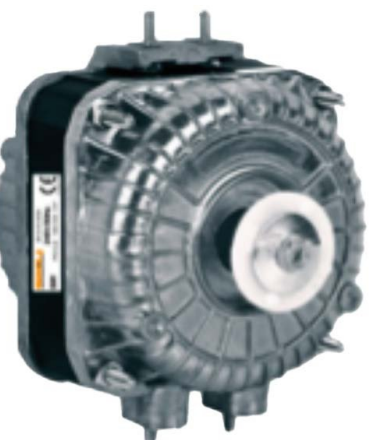

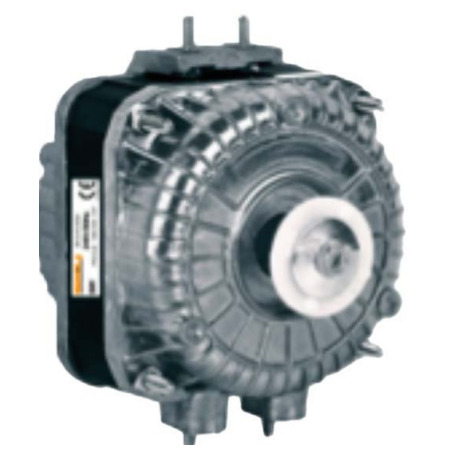

Fan Motor 16W | 1300 RPM Speed | IP42 Rated | 14 Point Multi Mount Frame | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 501-16-25-18/26
$31.80 List price: $38.50
+ −
30 Days Return Delivery Options
The Fan Motor 16W delivers reliable performance with a speed of 1300 RPM, making it ideal for HVAC systems and ventilation applications. Designed for single-phase operation, this motor features a versatile 14 point multi mount frame and is IP42 rated for protection against dust and water. With thermal and impedance protection, it ensures safe and efficient operation in various industrial and commercial settings.

Product Name/Title: Fan Motor 16W | 1300 RPM Speed | IP42 Rated | 14 Point Multi Mount Frame | by Aspen Pumps

Brand: Aspen Pumps

SKU: 501-16-25-18/26

Alternatively Known As: 16W Shaded Pole Fan Motor, 16 Watt Fan Motor, Single Phase Fan Motor 16W

Technical Specifications
  • Power Output: 16W
  • Voltage: 230V / 50Hz
  • Speed: 1300 RPM
  • Current: 0.45 Amps
  • Input Power: 60W
  • Supply Poles: 16
  • IP Rating: IP42
  • Insulation Class: B
  • Thermal Protection: Yes (for 10W and over)
  • Impedance Protection: Yes (for 5W)
  • Mounting: 14 point multi mount frame
  • Approvals: CE, VDE, UL, CCC
  • Dimensions (H x L x W): 41mm x 94mm x 56mm
  • Weight: 0.5 kg
Key Features
  • 16W power output with 1300 RPM speed
  • Single phase with 4 shaded poles
  • 14 point multi mount frame for versatile installation
  • IP42 rated with insulation class B
  • Thermally protected for 10W and over models
  • Impedance protected for 5W models
  • Supplied with mounting fasteners and 1m cord
  • Complies with CE, VDE, UL, CCC approvals and RoHS compliant
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper motor operation.
Applications
  • HVAC systems
  • Ventilation fans
  • Cooling and air circulation equipment
  • General industrial and commercial fan motor applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Meets ErP performance standards for energy efficiency
  • RoHS compliant, reducing hazardous substances
Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Aspen Pumps Fan Motor 16W is available for immediate purchase, ideal for HVAC and ventilation system applications.
