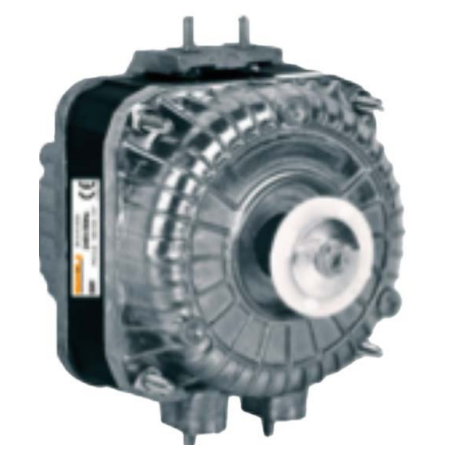

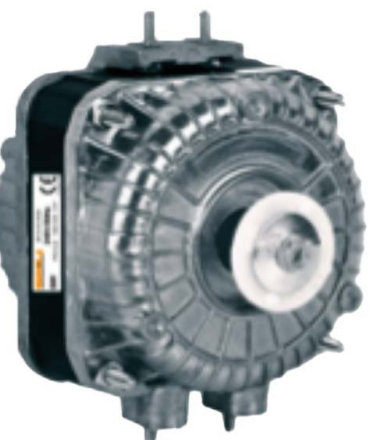

Fan Motor 25W | 1300 RPM Speed | IP42 Rated | 14 Point Multi Mount Frame | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 501-25-40-18/26
$42.90 List price: $51.90
+ −
30 Days Return Delivery Options
The Fan Motor 25W is designed for HVAC and ventilation systems, delivering a powerful 1300 RPM speed with a robust IP42 rating. Ideal for general-purpose applications, this single-phase motor features a versatile 14 point multi mount frame for easy installation and thermal protection for enhanced safety.

Product Name/Title: Fan Motor 25W | 1300 RPM Speed | IP42 Rated | 14 Point Multi Mount Frame | by Aspen Pumps

Brand: Aspen Pumps

SKU: 501-25-40-18/26

Alternatively Known As: 25W Fan Motor, Shaded Pole Fan Motor 25W, 230V Fan Motor, Single Phase Fan Motor

Technical Specifications
  • Power Output: 25W
  • Voltage: 230V/50Hz
  • Speed: 1300 RPM
  • Current: 0.70 Amps
  • Input Power: 90W
  • Supply Poles: 4 shaded poles
  • IP Rating: IP42
  • Insulation Class: B
  • Thermal Protection: Yes (for 10W and over)
  • Impedance Protection: Yes (for 5W)
  • Mounting: 14 point multi mount frame
  • Approvals: CE, VDE, UL, CCC
  • Dimensions (H x L x W): 40mm x 113mm x 57mm
  • Weight: 0.5 kg
Key Features
  • 25W power output with 1300 RPM speed
  • Single phase with 4 shaded poles
  • 14 point multi mount frame for versatile installation
  • IP42 rated with insulation class B
  • Thermally protected for 10W and over
  • Impedance protected for 5W
  • Supplied with mounting fasteners and 1m cord
  • Complies with CE, VDE, UL, CCC approvals and RoHS compliant
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper motor operation.
Applications
  • HVAC systems
  • Ventilation fans
  • Cooling equipment
  • General purpose fan motor applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Meets ErP performance standards for energy efficiency
  • RoHS compliant, reducing hazardous substances
Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Aspen Pumps Fan Motor 25W is available for immediate purchase, ideal for HVAC and ventilation system applications.
